Fuser Exit Roller Assembly
1 Remove Printer Covers, Delivery Assembly (Figures 6-9 and 6-10), Fuser Pressure Plate (Figure
6-11), and Heating Element (Figures 6-13 through 6-15), Pressure Roller (Figure 6-16), and
Face-Up/Face-Down Lever (Figure 6-17).
2 Remove the gear from the left end of the roller shaft by pressing down on the catching
mechanism with the small flathead screwdriver and pulling the gear away.
3 Remove the Exit Roller Assembly by pressing the small, white tab upward (Figure 6-18, callout 1)
and rotating it around (Figure 6-18, callout 2).
Note While the shape of the white tab was changed for the HP LaserJet 6L, these procedures for Fuser Exit
Roller Assembly removal remain unchanged. Figure 6-18 shows the white tab from an HP LaserJet 5L.
4 Slide the Exit Roller Assembly forward and out to the right of the printer.

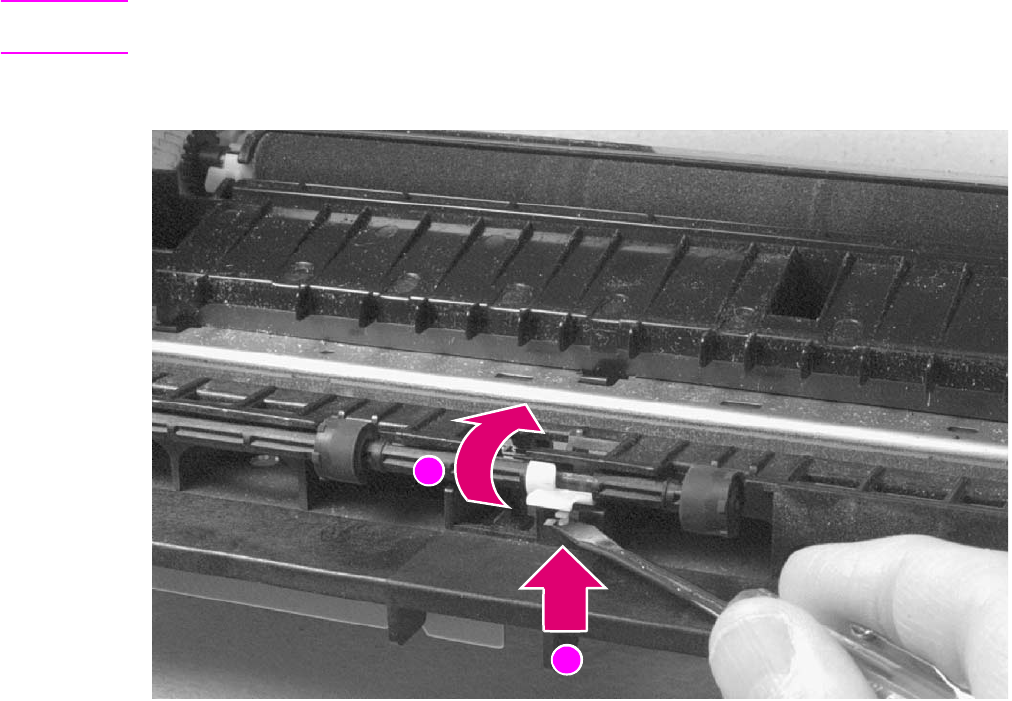

Figure 6-18 Fuser Exit Roller removal
2
1
