88 Removal and replacement EN
Face-Up/Face-Down Lever
1 Remove Printer Covers, Delivery Assembly (Figures 6-9 and 6-10), Fuser Pressure Plate (Figure
6-11), and Heating Element (Figures 6-13 through 6-15), and Pressure Roller (Figure 6-16).
2 Rotate the lever forward 90 degrees (past the spring) and pull it straight out the front of the
printer.
To reinstall
1 Make sure the lever arm is on the left and is initially pointing downward.
2 Pull the spring forward using needlenose pliers.
3 Slide the short, round tabs into the grooves on the Separation Guide Assembly. The machined
ridges on the lever will face you.
4 Release the spring so it falls in place in front of the square tab (Figure 6-17).
Note While the shape of the lever was changed for the HP LaserJet 6L (a stiffening rod was also added),
these procedures for Face-Up/Face-Down Lever removal remain unchanged. Figure 6-17 shows the
lever from an HP LaserJet 5L.

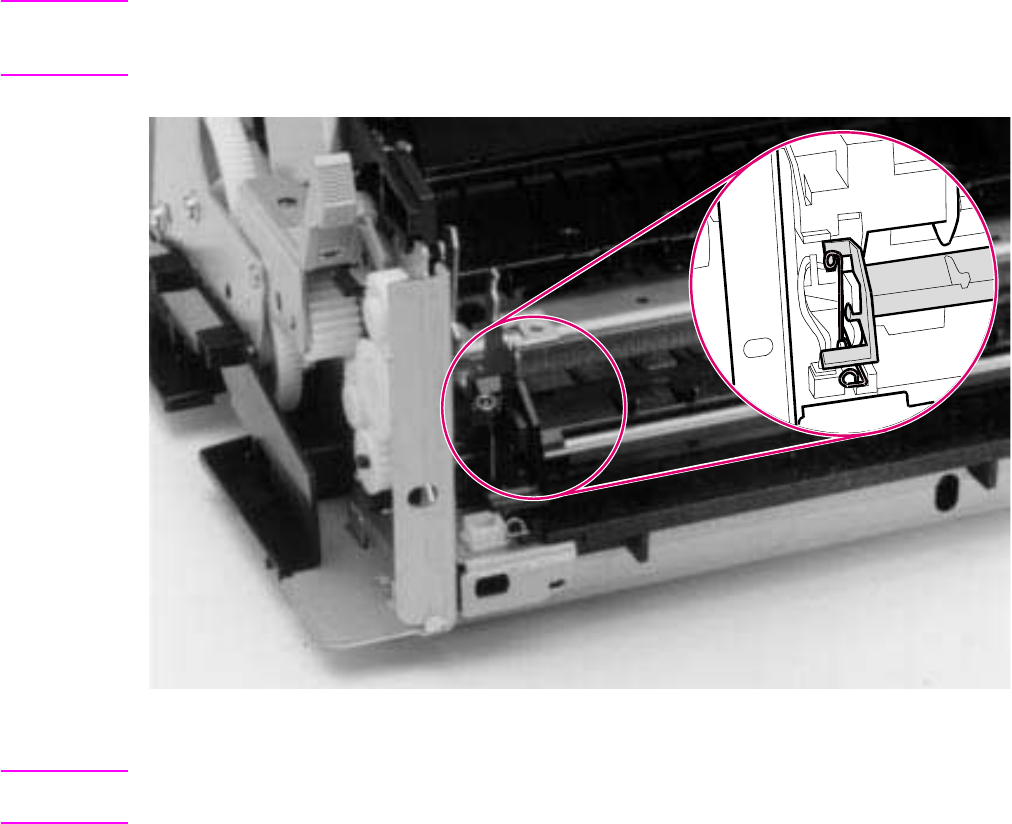

Figure 6-17 Face-Up/Face-Down Lever replacement
Note You can tell when the lever is in place because there are two plastic grooves that fit precisely in front
of the Exit Rollers, and you should be able to feel the spring’s release mechanism.
