© National Instruments Corp. 3 FP-PG-522 and cFP-PG-522
To install the cFP-PG-522, refer to Figure 2 and complete the
following steps:
1. Align the captive screws on the cFP-PG-522 with the holes on
the backplane. The alignment keys on the cFP-PG-522 prevent
backward insertion.
2. Press firmly to seat the cFP-PG-522 on the backplane.
3. Using a number 2 Phillips screwdriver with a shank of at least
64 mm (2.5 in.) length, tighten the captive screws to 1.1 N ⋅ m
(10 lb ⋅ in.) of torque. The nylon coating on the screws prevents
them from loosening.

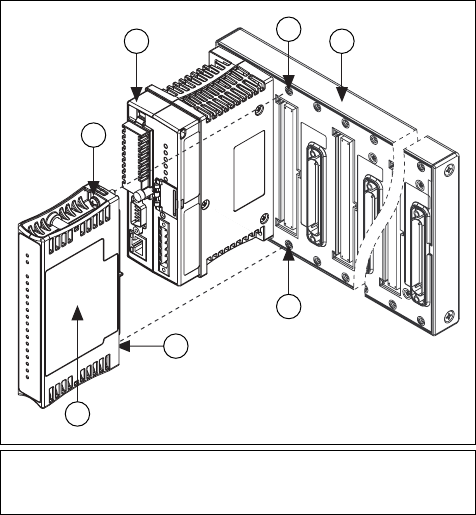

Figure 2. Installing the cFP-PG-522
1 cFP I/O Module
2 Captive Screws
3 cFP Controller Module
4 Screw Holes
5 cFP Backplane
