DIMM Replacement
The DIMMs are cold FRU replacement components. The entire server must be
powered off and the power cords disconnected to replace the DIMMs.
FIGURE 1 shows the memory board memory slot locations.

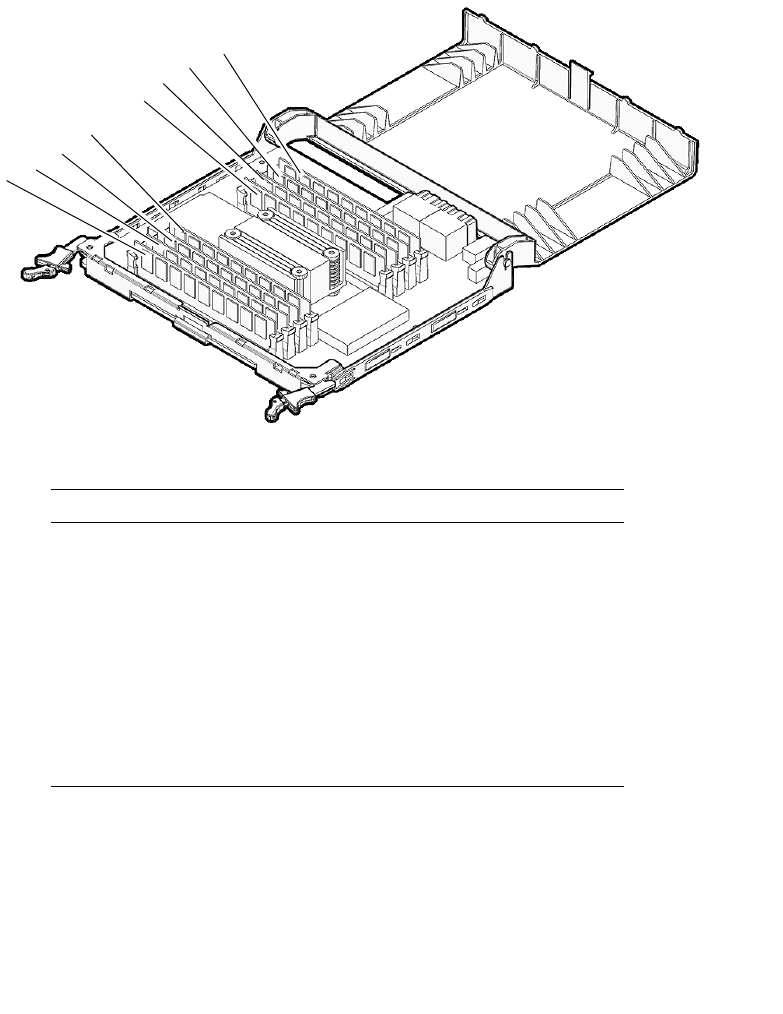

FIGURE 1 Memory Board DIMM Slot Numbering
You can mount up to 4 memory boards on the SPARC Enterprise M4000 server and
up to 8 memory boards on the SPARC Enterprise M5000 server. The DIMMs on the
memory board are grouped into group A and group B.
Location Number Component
1 MEM#2A, Memory Slot (Group A)
2 MEM#2B, Memory Slot (Group B)
3 MEM#3A, Memory Slot (Group A)
4 MEM#3B, Memory Slot (Group B)
5 MEM#1B, Memory Slot (Group B)
6 MEM#1A, Memory Slot (Group A)
7 MEM#0B, Memory Slot (Group B)
8 MEM#0A, Memory Slot (Group A)
1
2
3
4
5
6
7
8
