Q1860-90918 6 Removing and replacing parts 167
Power inlet assembly
1 Remove the top cover (see page 115) and the right side cover (page 123).
2 Remove the switch rod (callout 1) by flexing it slightly and unhooking it from the switches on
each end.
3 Remove the three self-tapping screws (callout 2) from the power inlet housing.
4 Remove the machine screw (callout 3) and grounding wire.

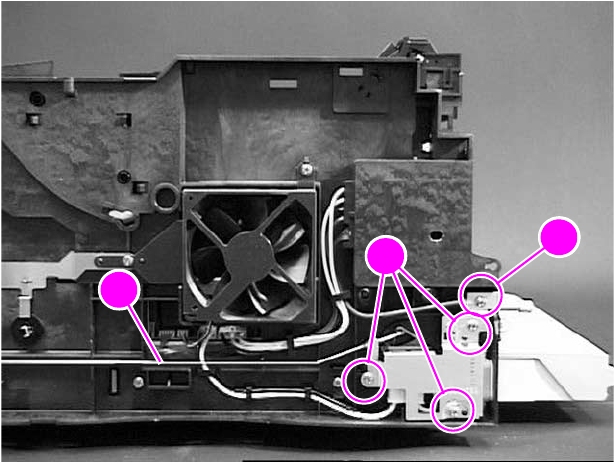

Figure 100. Power inlet assembly removal
5 Unthread the line-voltage cable from the frame.
6 Press down the top of the line-voltage connector to release it from the power-supply PCA.
