122 Removing and replacing parts Q1860-90918
Face-down cover
1 Remove the top cover (see page 115).
2 Face the back of the printer.
3 Squeeze the locking tabs (callout 1) inward, one side at a time, to release the face-down
cover.
Figure 49. Face-down cover removal (1 of 2)
4 Grasp the cover (in the middle, approximately), and then lift it up to clear the laser/scanner,
removing it with a rolling motion away from you.

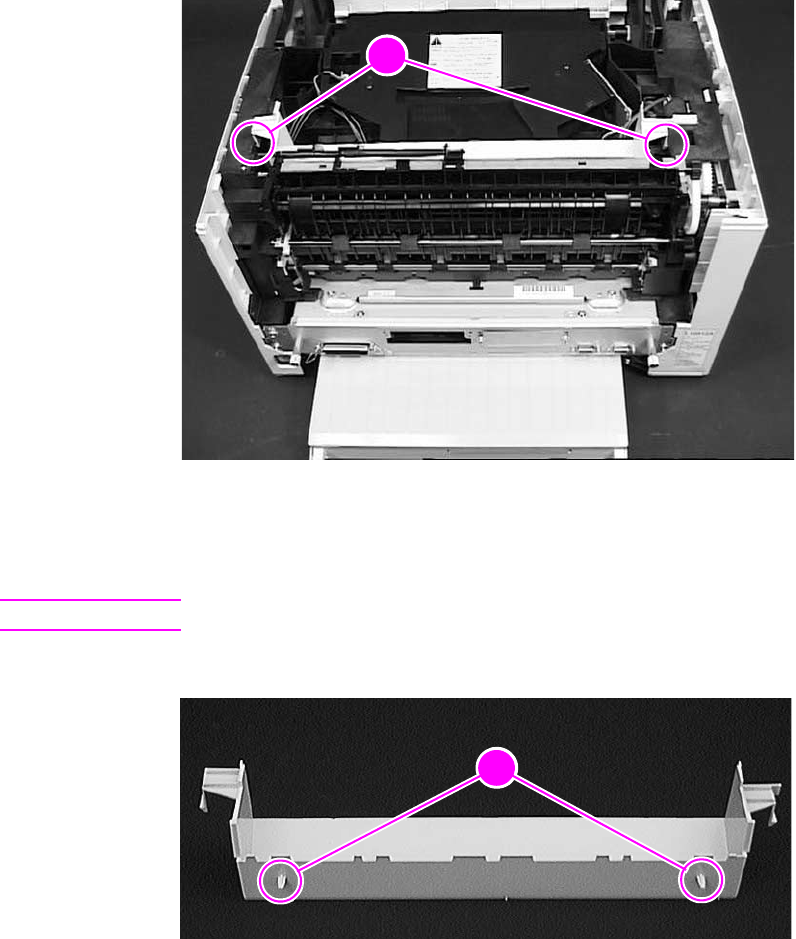

Note Be careful not to break the two locator pins (callout 2) on the front of the assembly.
Figure 50. Face-down cover removal (2 of 2)
