152 Removing and replacing parts Q1860-90918
Tray 2 shaft
1 Remove the top cover (see page 115), the left and right side covers (page 123), the pickup
gear assembly (page 136), the paper-handling PCA (page 131), and the paper-feed roller
assembly (page 144).
2 Remove the small spring from the gear that is on the left side of the shaft (see figure 65 on
page 136, callout 1).
3 Turn the Tray 2 shaft to align the solenoid arm (callout 1) with the gap in the gear (on the left
side of the printer).
4 Press the release tabs (callout 2) outward, and slide the gear off of the shaft.
5 Remove the bushing on the right side of the shaft by lifting the release tab and sliding the
bushing off of the shaft.
6 Slide the shaft to the right, then angle it out of the chassis.

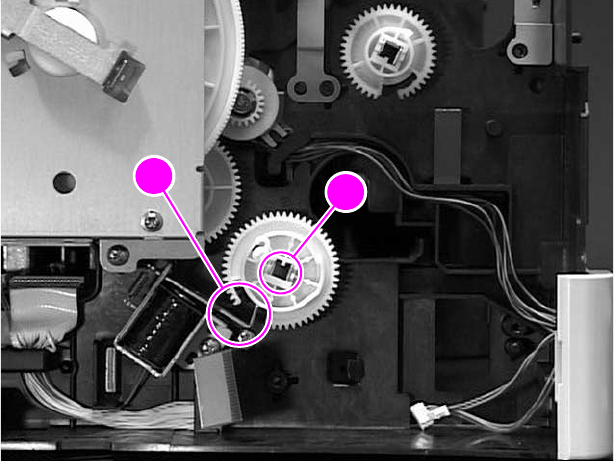

Figure 85. Tray 2 shaft removal (left side view of printer)
2
2
1
2
