148 Removing and replacing parts Q1860-90918
Paper-feed belt assembly
1 Remove the top cover (see page 115), the left and right side covers (page 123), the transfer-
roller assembly (page 128), the fuser (page 114), the main gear assembly (page 134), and
the dc controller (page 146).
2 Facing the front of the printer, remove two machine screws (callout 1), one on each side of
the belt assembly.

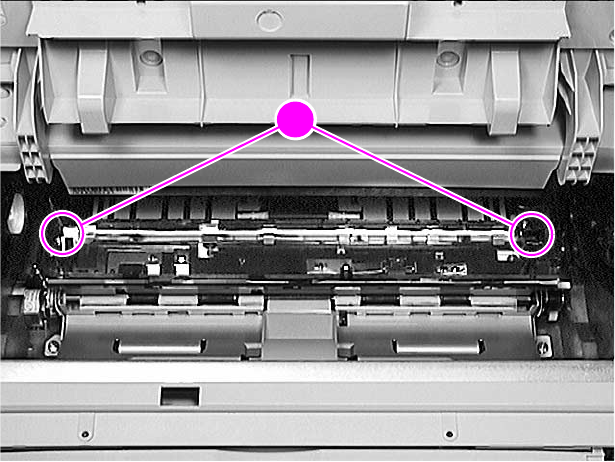

Figure 81. Paper-feed belt assembly removal (1 of 2)
2
1
