Remove the base enclosure:

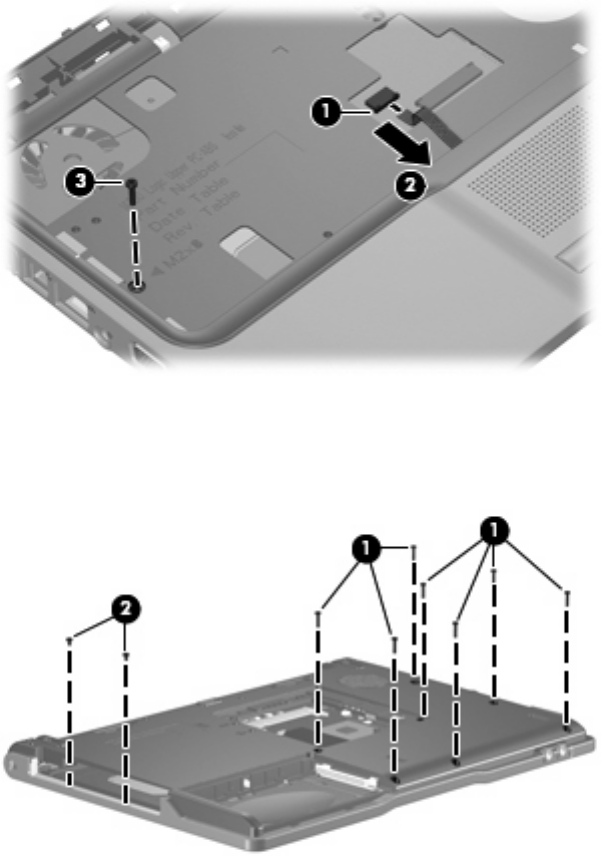

1. Release the ZIF connector (1) to which the TouchPad cable is attached and disconnect the
TouchPad cable (2).
2. Remove the Phillips PM2.0×9.0 screw (3) that secures the base enclosure to the computer.
3. Turn the computer upside down with the front toward you.
4. Remove the seven Phillips PM2.0×9.0 screws (1) and the two Phillips PM2.0×3.0 screws (2) that
secure the base enclosure to the computer.
