Chapter 2: Hardware Components
Span Status LEDs. The DS1 card contains eight Span Status LEDs, viewable from the front of the chassis, to
provide a high level indication of the traffic status between the T1/E1 lines (also available on the rear of the
chassis) and the network equipment (i.e., PBX or PSTN). Each LED relates to one line on the rear of the DS1
card.
• Off. SPAN is not connected. See Chapter 8: Diagnostics/Maintenance for a detailed description and
troubleshooting techniques.
• Green. Line is operating properly.
• Red. Local alarm generated (i.e., loss of framing).
• Amber. Remote alarm generated (i.e., remote side has a problem and is sending a Yellow alarm).
Hot Swap LED. A lit blue light indicates that the DS1 card is not in service.
RJ-48 Input/Output ports. The eight RJ-48 connectors on the rear of the DS1 card (the transition module)
are used to provide network access; they route signals between the T1 or E1 and a piece of network equipment
(i.e., PBX or PSTN). The input/output signals are listed in Table 2-6.

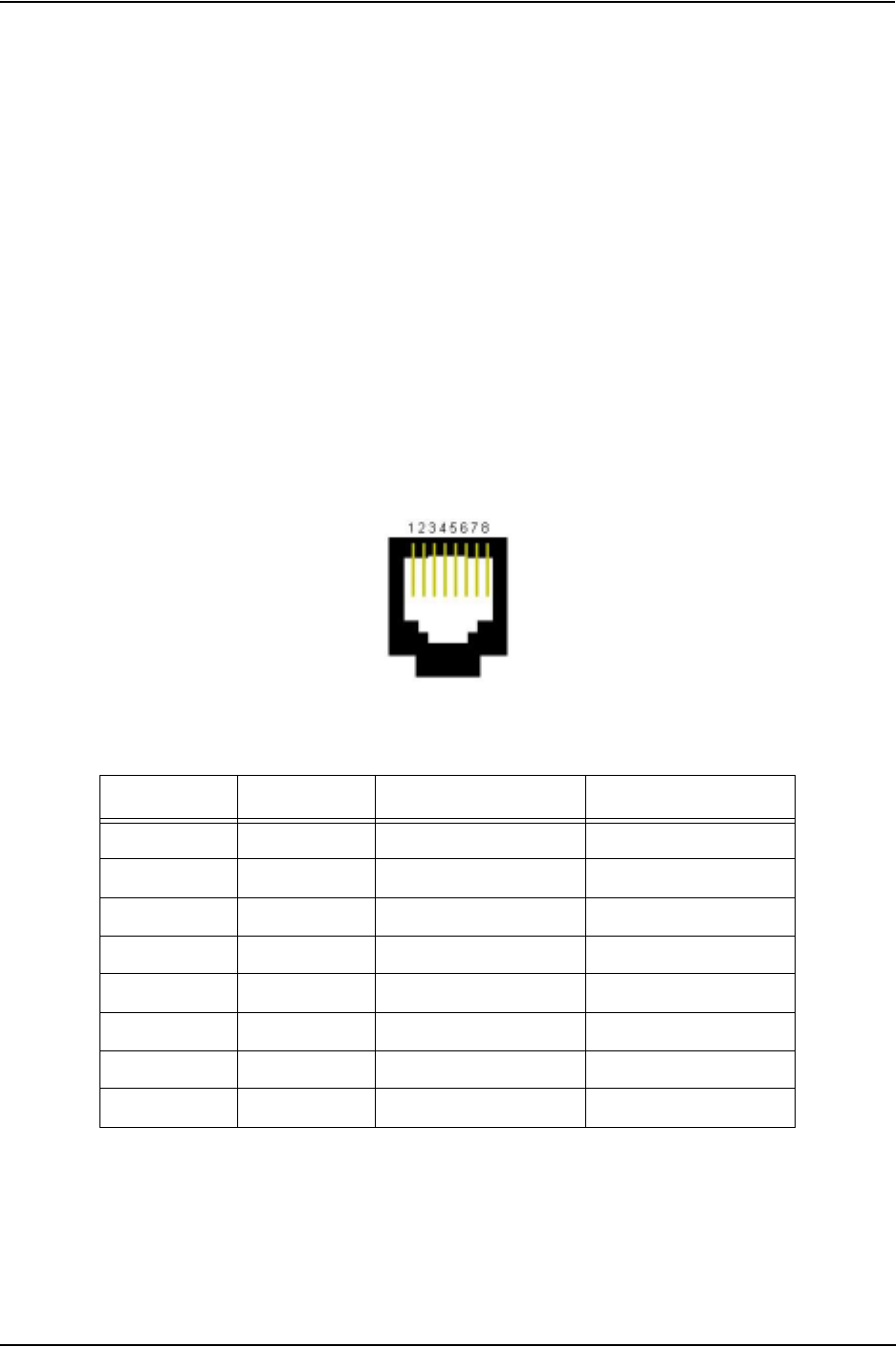

Figure 2-21 RJ-48 Port Pin Order
Table 2-6 DS1 Signal for DS1Card - RJ-48 Ports
Ethernet port LEDs (rear view). Not available in current release.
Port# Pin Signal Definition
1-8 1 RR - Receive Ring
1-8 2 RT + Receive Tip
1-8 3 N/C Not Connected
1-8 4 TR - Transmit Ring
1-8 5 TT + Transmit Tip
1-8 6 N/C Not Connected
1-8 7 N/C No Connect
1-8 8 N/C No Connect
