2-20 P/N 480-0005-00-15
Chapter 2: Hardware Components
Hot Swap. For future use.
Rear View

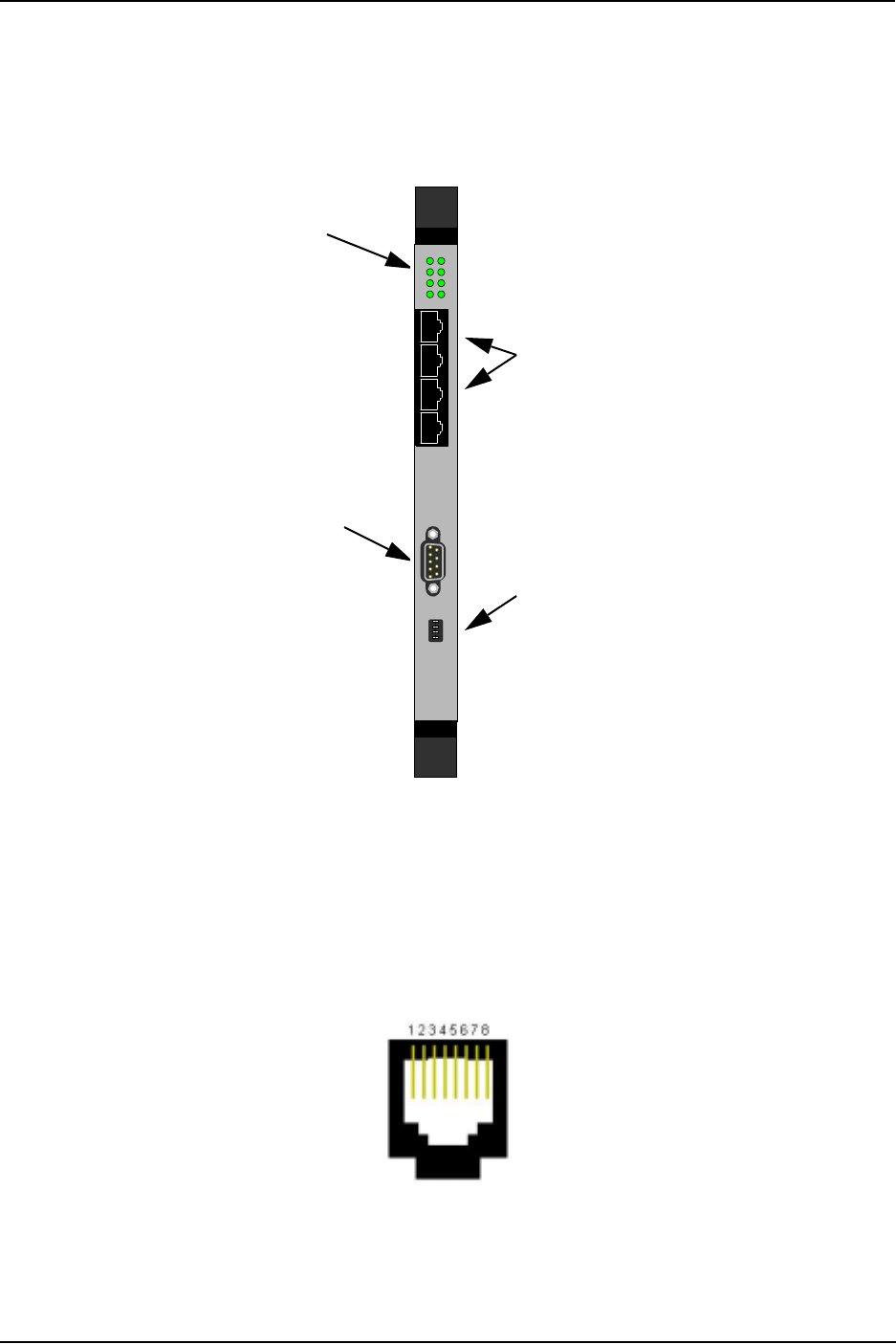

Figure 2-17 CPU Card (Rear)
Link LEDs. The CPU card contains four Link and TX/RX Status LEDs, viewable from the rear of the chassis,
to provide a high level indication of the system operational mode and chassis activity.
10/100 Base-T Ethernet port. The Ethernet port (one port is functional; the other three ports are not used)
provides an RJ-45 jack for an individual connection to a 10/100 Ethernet LAN switch or hub via RJ-45 cable.
The Ethernet port is individually configured with a unique IP and MAC address.
Figure 2-18 10/100 BASE-T Ethernet Port Pin Order
Link LEDs
10/100 Ethernet ports
Console Port
Config Switch
(Quintum Use Only)
1
2
3
4
Console
Config
1
2
3
4
10/100
Ethernet
Link TX/RX
1
2
3
4
CPU
Off On
