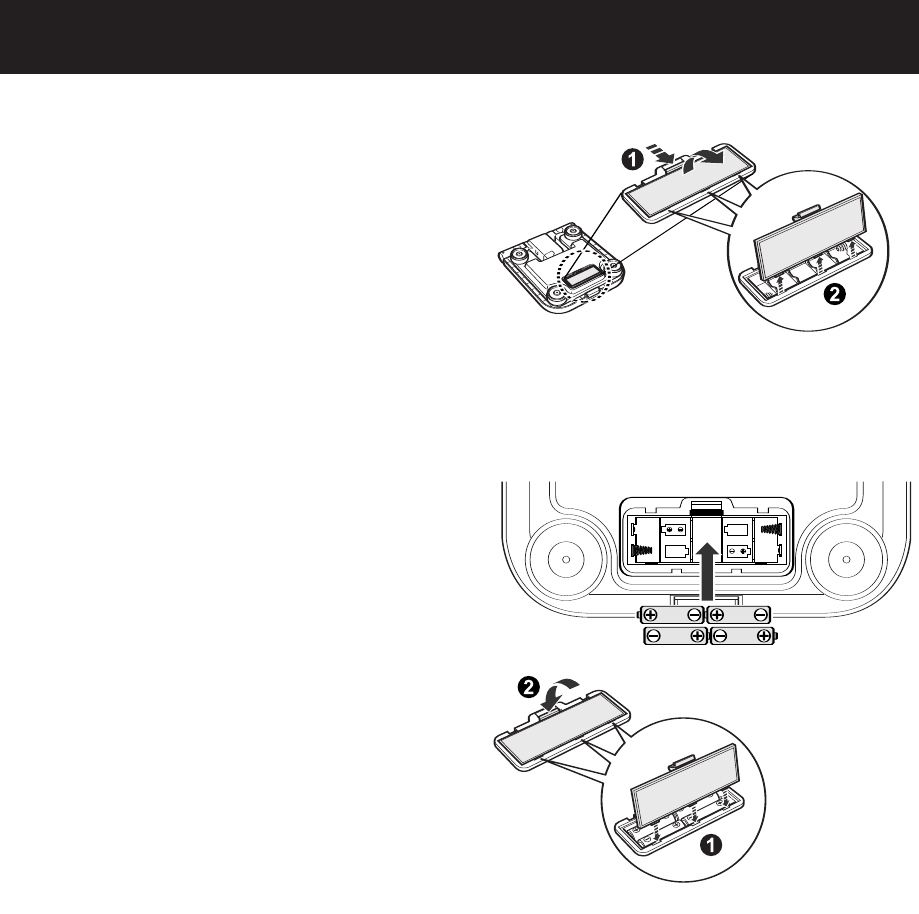

BATTERY INSTALLATION
1. Locate the Battery Cover on the back of the
unit.
1) Press the tab on the battery cover in the
direction of the arrow to release the cover as
illustrated.
2) Pull the tab of the cover upwards.
2.
INSTALL 4 “AA” SIZE BATTERIES
so the
+
(positive) and – (negative) polarities match the
polarities of the battery compartment as indicated
in the ba
ttery compartment
.
3.
Replace the battery cover.
1) Align the hooks on the battery cover with
the slots in the battery compartment.
2) Push the battery cover until the tab clicks
into place.
18
Rear
HBF-500 for FDA 10-26.qxd 10/26/06 4:21 PM Page 18
