ASSEMBLY INSTRUCTIONS
Parts List:
(1) Platform Assembly (includes ramp and handrail) (1) Small Back Cover
(1) Display Assembly (1) Front Cover
(4) Plastic Feet Assemblies (1) Rear Cover
(1) AC Adapter Holder (6) Screws for Display
(3) Cable Holder Clips (2) Screws for AC Holder
Tools required:
Phillips head screwdriver, Allen wrenches (included).
Remove each assembly from the carton and unwrap packing material carefully to prevent
scratching the unit’s parts. It is recommended to perform the assembly by two persons.

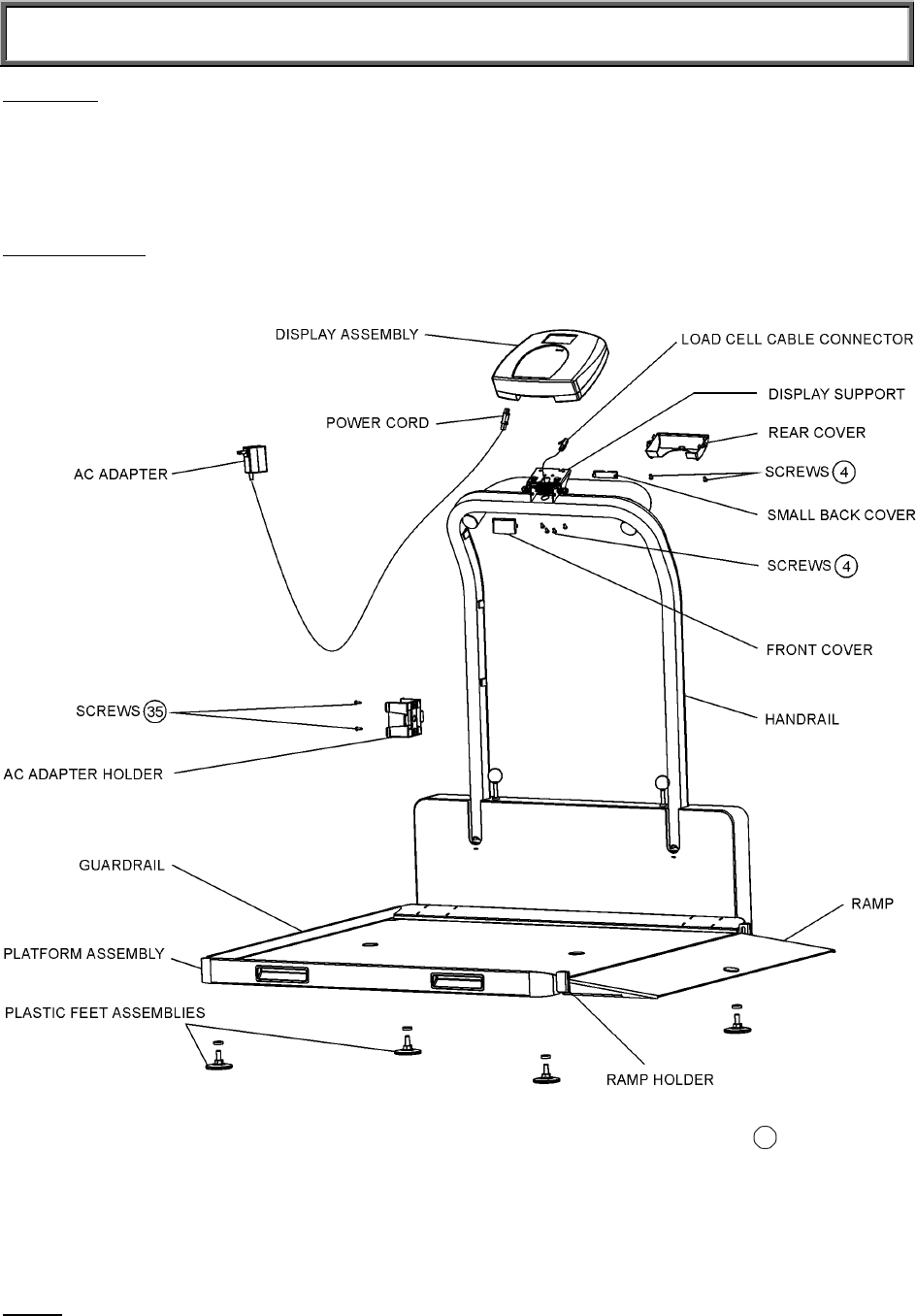

Figure 1. Assembly After Shipment
(refer to the Parts List on page 23 for details on parts followed by
#
)
1. Open the scale to operational position (see Scale Opening instructions on page 6).
2. Rotate the display support so that it is perpendicular to the handrail.
3. Position the display assembly close to the display support on the handrail. Connect the
load cell cable connector to the load cell port on the rear of the display assembly and
insert and secure the cable into the center channel in the display.
NOTE
: Do not attach the Power Cord at this point.
