System Setup Controls
Menu Navigation Controls
• MENU Button () - Accesses the setup menu, and
returns to previous menu options.
• UP / DOWN Controls (
▲▼) - Move Up/Down to
move through the Menu Options
• LEFT / RIGHT Controls (
◄►) - Move Left / Right
to enter a Menu Option, and press left and right to
change the Menu Settings.
Setup Menu - Options
The Setup Menu has7 options (L104 Series) or 8 options (L104V Series):
• SYSTEM SETUP - The system menu contains basic configuration settings, such as Time/Date,
Password, Alarms and Audio Settings.
• CAMERA SETUP - The camera menu contains the individual camera settings, including viewing,
recording, and image settings.
• RECORD SETUP - This menu contains the recording settings for Single and Quad recording.
• RECORDING SCHEDULE - This menu contains the recording settings by hour
• MOTION SETUP - Configure each camera for Motion Detection Sensitivity.
• HARD DRIVE SETUP – Turns the Overwrite ON/OFF and Formats the Hard Drive.
• XVGA RESOLUTION – Used to change the VGA Resolution output to a PC Monitor (L104V
Series ONLY).
• SYSTEM RESTORE – Restores Factory Defaults
• Enter the MENU screen by pressing the MENU button
(). Enter the password to display the Menu Selection
Screen. The Default password is <111111> - press MENU
to accept the password.
• Scroll through the 7 options by pressing the UP & DOWN
(
▲▼) buttons on the Front Panel or Remote Control.
• To enter a sub-menu, navigate to the option and press the
RIGHT button (
►). To exit a SUBMENU, press the MENU
button.
• To change the options, press the RIGHT and LEFT buttons
(
◄►).
• Press the MENU Button () to accept the setting change,
and return to the previous menu.
• To exit the MAIN MENU, press the MENU button ().

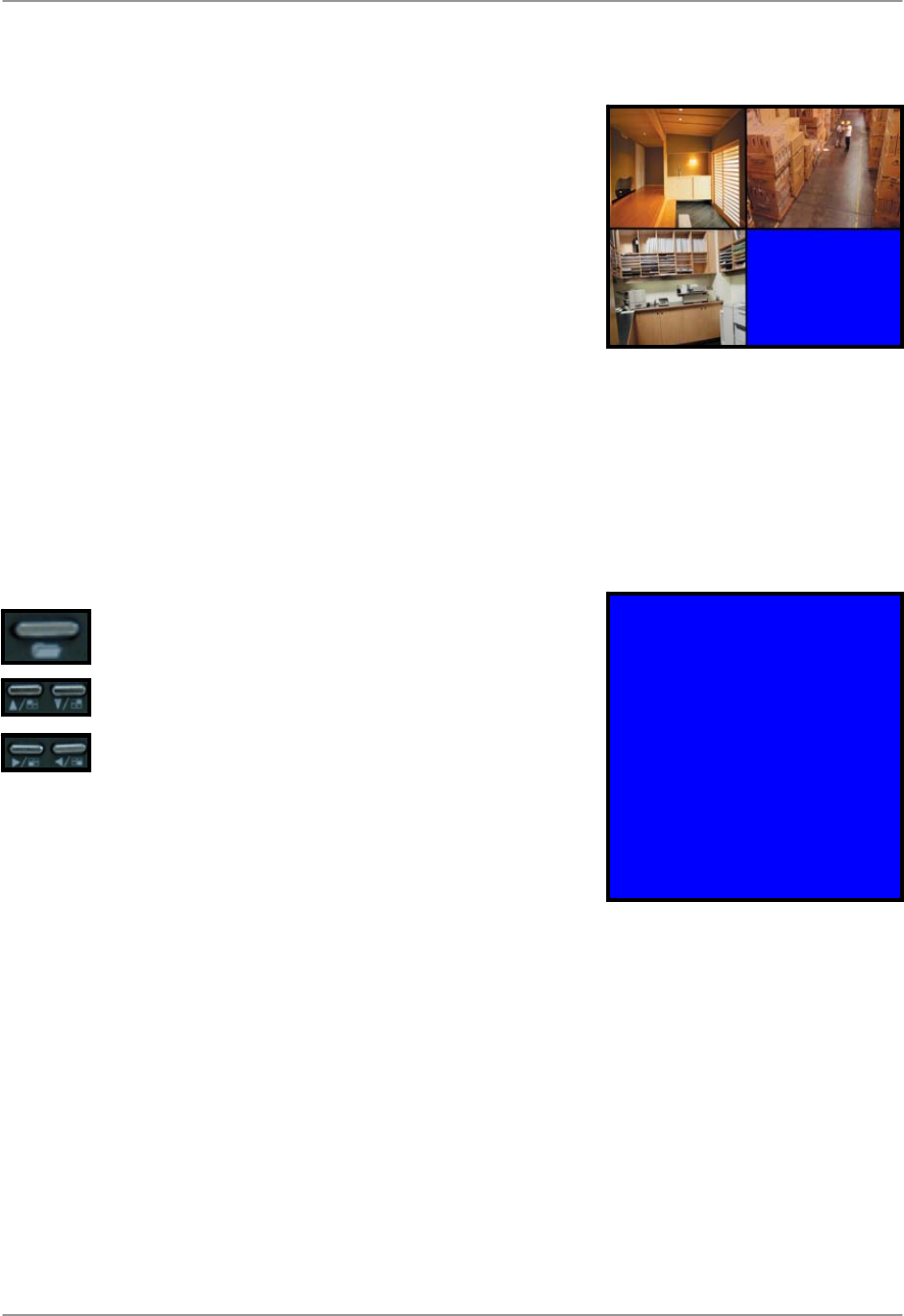

PASSWORD INPUT (6): ------
SYSTEM SETUP
CAMERA SETUP
RECORD SETUP
RECORD SCHEDULE
MOTION SETUP
HARD DRIVE SETUP
XVGA RESOLUTION 640x480
SYSTEM RESTORE
(▲▼): SELECT (◄►): SET (): EXIT
MAIN MENU
>
