Display Modes
15
General Display Overview
Camera Display Modes
Cameras can be displayed in Single Channel, QUAD Channel or Sequence Modes.
• The DVR defaults to Quad view when first loaded.
• Press the Channel Buttons to display a single channel or return to Quad View.
• Press the Sequence button to display all cameras in a rotating sequence mode (3 second view
per channel by default).

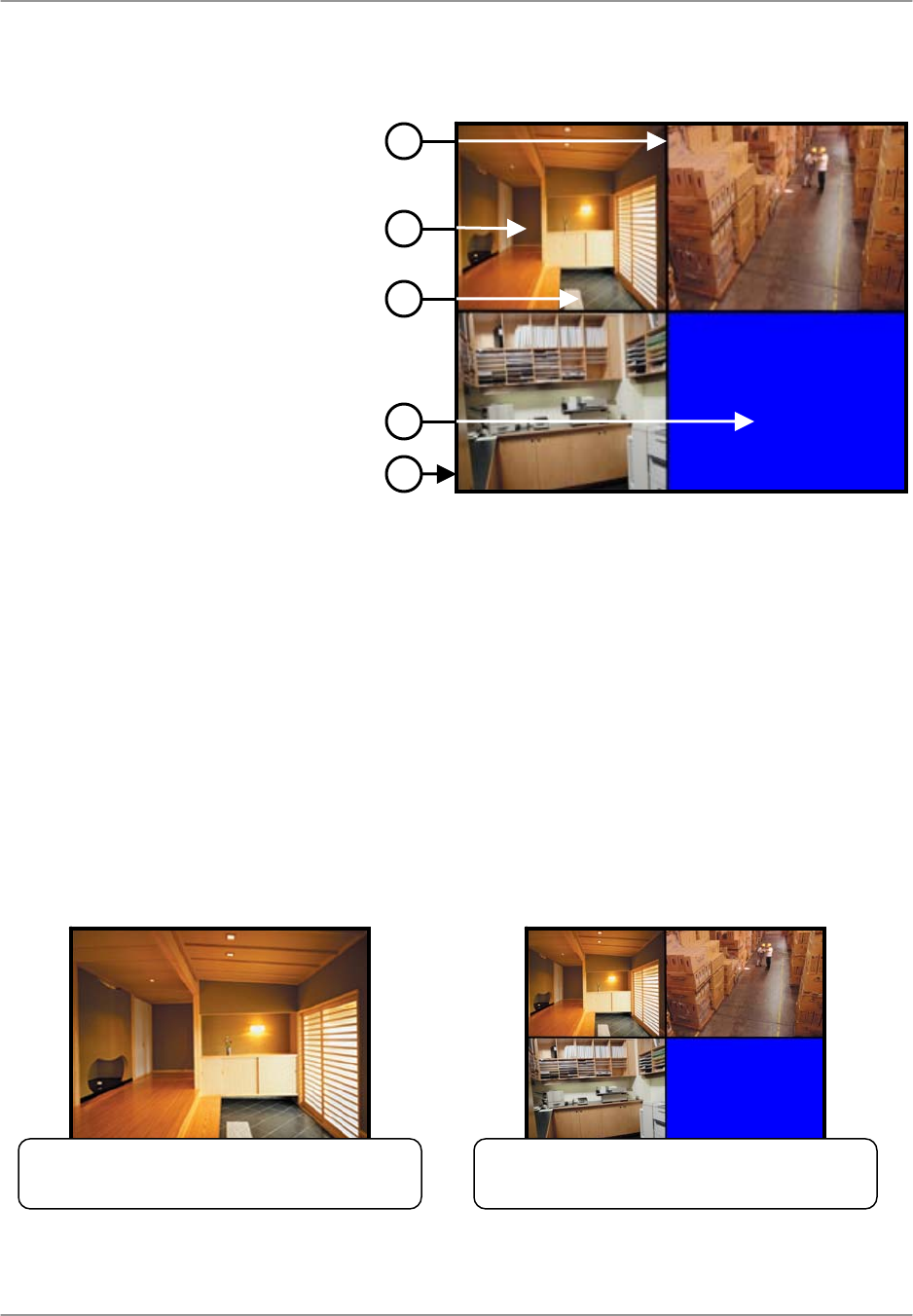

1. DATE & TIME - Displays the current
Date and Time for the DVR.
2. PASSWORD INPUT - The
Password Input appears when
manually stopping the Recording, or
entering Menu Mode. The default
password is 111111.
3. CAMERA TITLE & RECORDING
STATUS - Displays the Camera Name
(Up to 8 Characters) and Displays the
current Recording Status (if the System
is recording the
□ symbol appears).
4. V-LOSS MESSAGE - Appears when
the Camera is not sending a Video
Image.
5. REC MESSAGE - Displays the drive
usage when recording.
1
2
4
5
□ CH1 CH2 □
□ CH3 CH4 □
2007/10/10 01:02:03
V-LOSS
PASSWORD INPUT (6): ------
EACH REC [M] (T)
3
SINGLE CHANNEL VIEW – Press the
corresponding Channel Number to view.
□ CH1
CH1 CH2
CH3 CH4
2007/10/10 01:02:03
V-LOSS
QUAD CHANNEL VIEW CAM 1~4 – Press
the VIEW button to display the Quad View.
