2-3
Installation
User Accessible Daughterboard Components
The user accessible components are located on the underside of the
daughterboard. These components include an eight-position DIP switch, a
replaceable SMB-1 PROM, a replaceable BOOT PROM, and sockets for DRAM
and FLASH memory.
You can access the DIP switch without removing the
daughterboard.
However, to access the other components on the daughterboard,
you must remove the daughterboard from the motherboard.
DIP Switch
The daughterboard eight-position DIP switch location is shown in Figure 2-2. The
switch functions are described in Table 2-1.

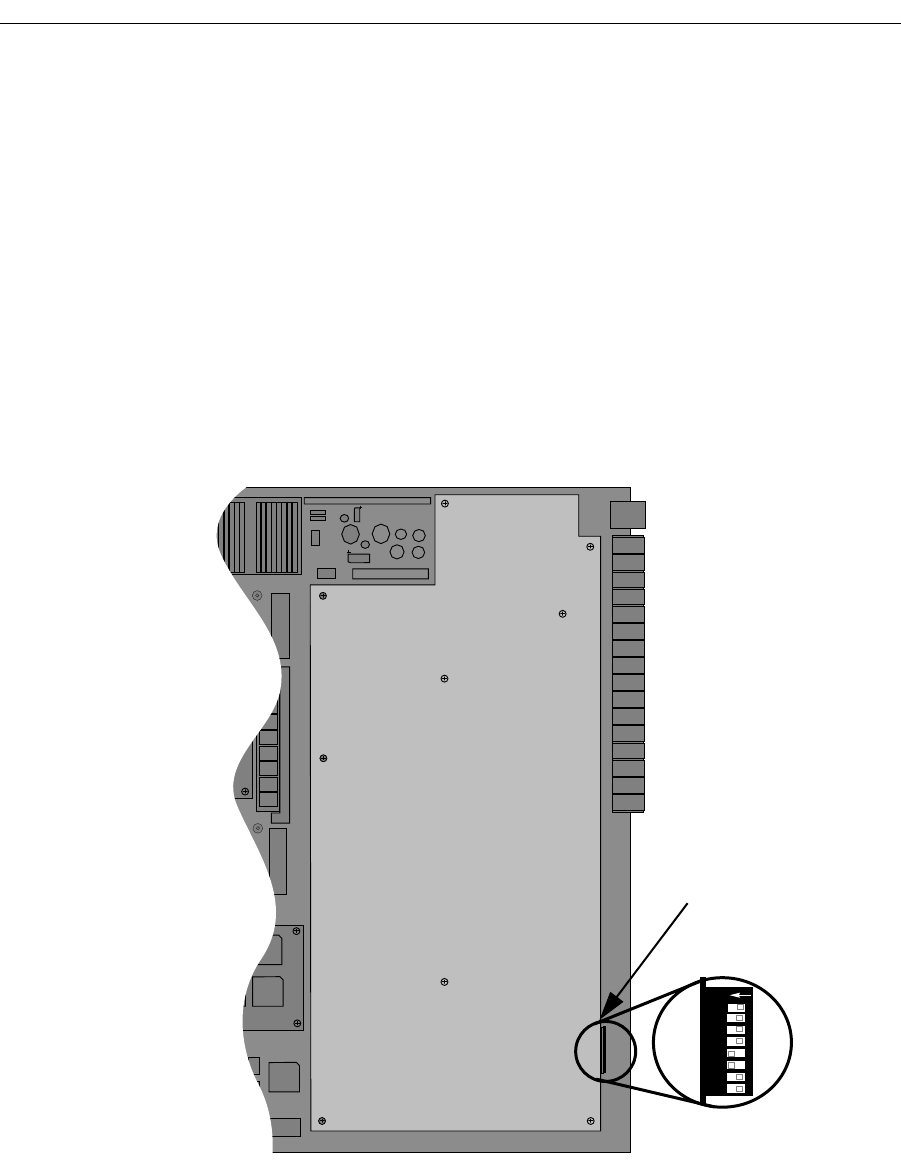

Figure 2-2. 9G421-02/9G429-02 Daughterboard DIP Switch Location
8642 7531
N
O
DIP Switch
(side view in
insert)
