III. YOUR POWER CHAIR
Main Circuit Breaker: The main circuit breaker is a safety feature built into your power chair. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent damage
to the motors and the electronics. If the circuit trips, allow your power chair to “rest” for approximately one
minute. Next, push in the circuit breaker button, turn on the controller, and continue normal operation. If the main
circuit breaker continues to trip repeatedly, contact your authorized Pride Provider.

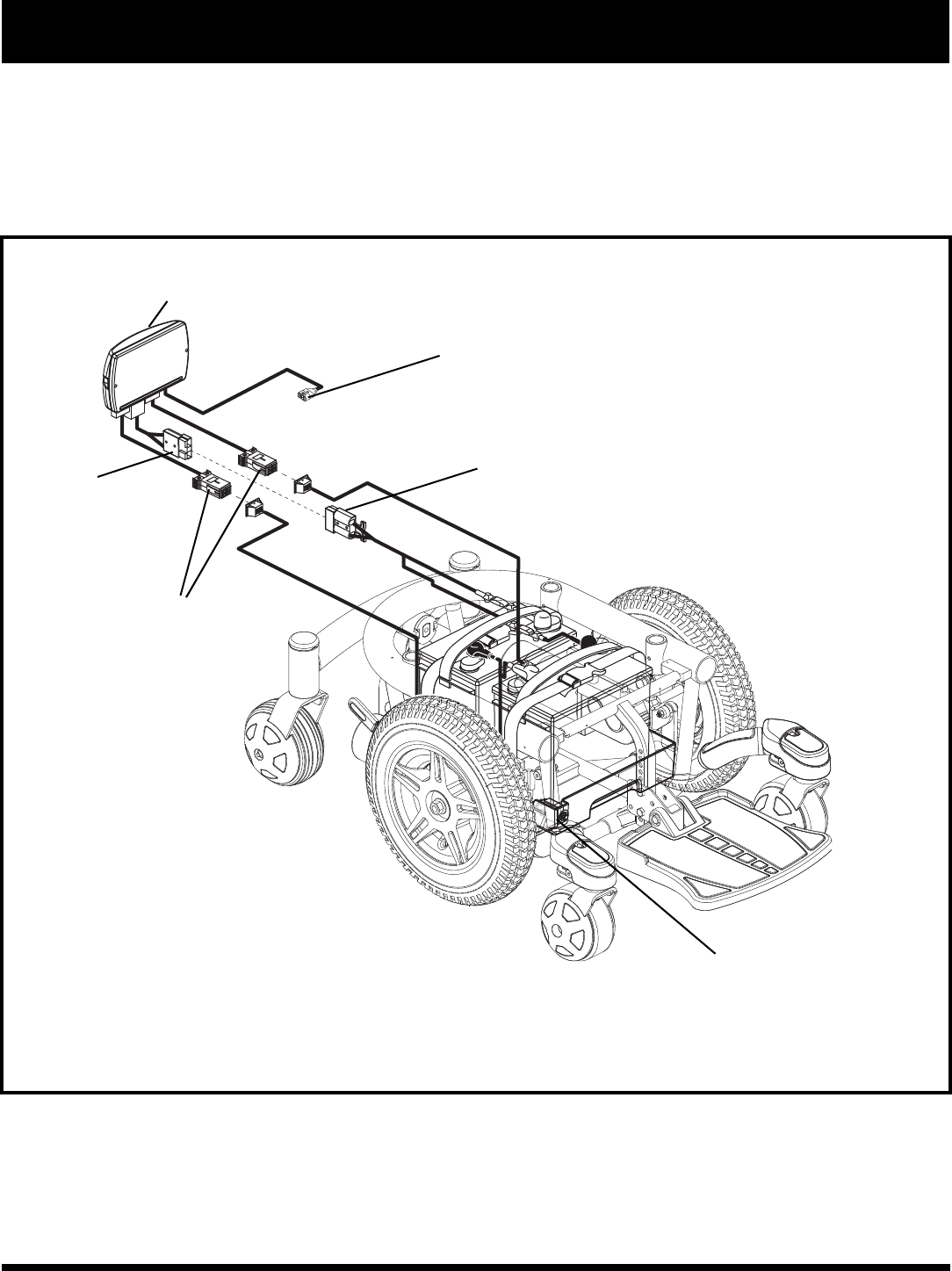

Figure 7. Jazzy 600 Series Electrical Components
BATTERY CONNECTOR
POWER MODULE
TO JOYSTICK
MAIN CIRCUIT
BREAKER
MOTOR
CONNECTORS
