ASSEMBLY INSTRUCTIONS
Before Assembly
The Model 2000KL ProPlus® Stretcher Scale is shipped disassembled in two (2) separate
cartons. Carefully inspect all cartons for shipping damage before unpacking. If damage is found,
contact your shipper or Healthometer Professional immediately. Claims must be filed with the
shipper as soon as possible after receipt of the damaged package.
Remove each assembly from the carton and unwrap packing material carefully to prevent
scratching the unit’s parts. It is recommended that two people perform the assembly.
The scale is shipped in two (2) separate cartons as follows:
A. Large carton containing:
(1) Hydraulic pump assembly
(1) Lifter mast
(1) Base adjustment lever
(1) Lifter base with casters
B. Small carton containing:
(1) Lifter boom (1) Stretcher storage tray (4) Stretcher bars
(1) Display support (1) Adapter holder (2) Stretcher bar joint
(1) Display assembly (1) AC adapter (1) Hexagon screw with
lock nut
(1) Load cell assembly (1) Display rear cover (2) Plastic washer
(1) Velcro strap
(2) Stretcher hoops (6) Screws for display
(1) Stretcher sheet (2) Shoulder screw and washer
Tools required: Phillips head screwdriver, adjustable wrenches, 7/16” Allen wrench.

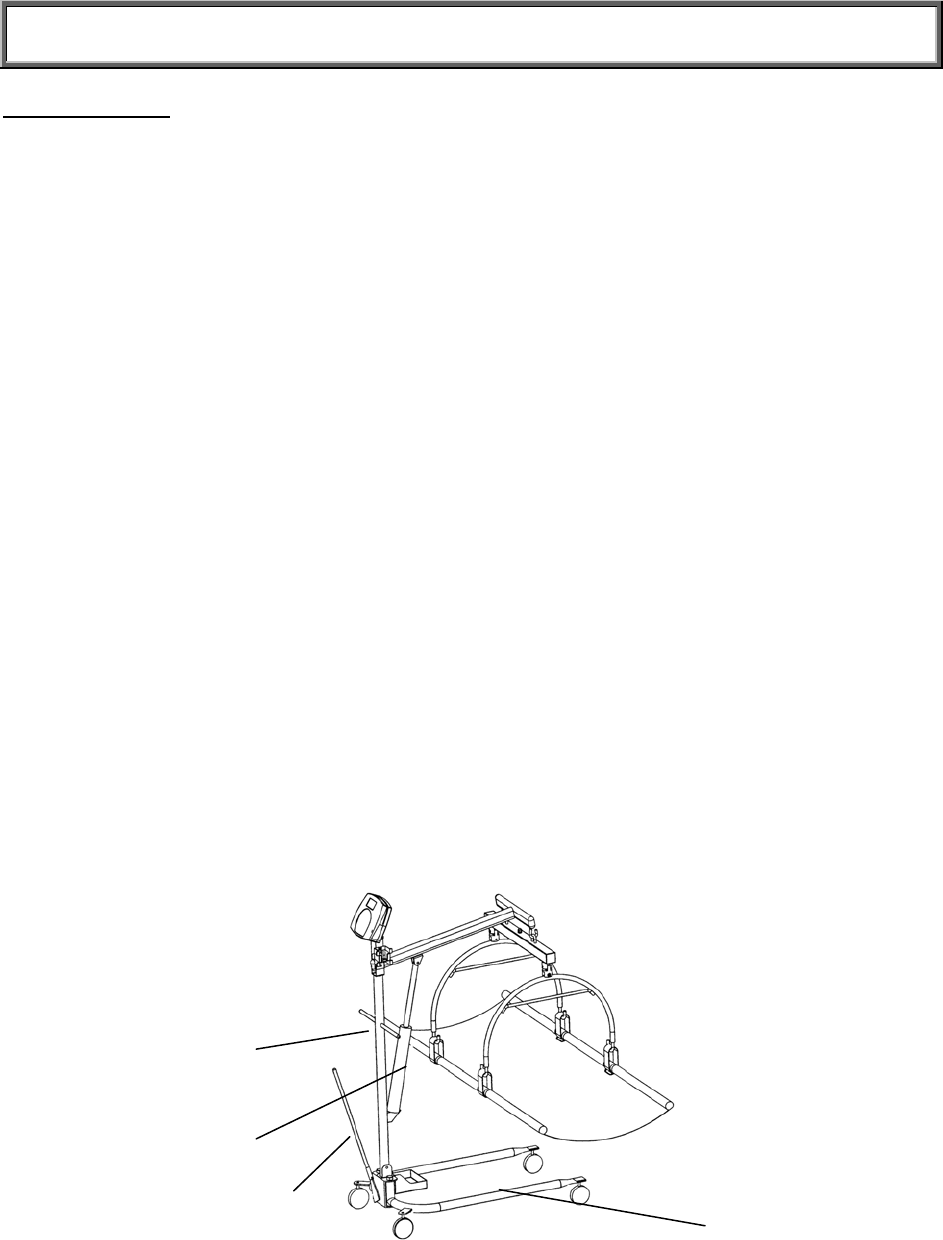

Parts of Stretcher Scale
Lifter mast
Hydraulic pump assembly
Base adjustment lever
L
Lifter base with casters
Figure 1
