Maintenance 255
Insert a new tape roll
1

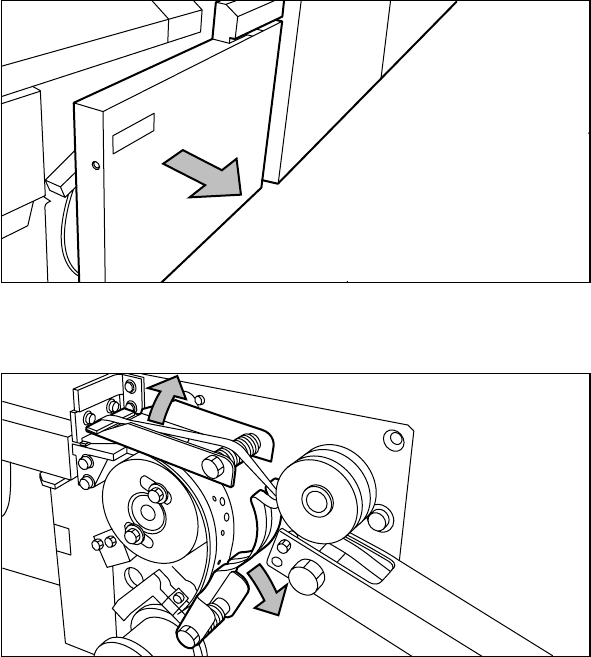

Open the side door of the reinforcement unit (see figure 143).
[143] Opening the side door of the reinforcement unit
2 Turn the two guide plates away from the pin roller and lock them into their
open position (see figure 144).
[144] Opening the guide plates
