Hotel Attendant Interface
PA-CS08
Hotel Attendant Interface
1. General Function
This circuit card is the Hotel Attendant Console (Hotel ATTCON) interface card that supports the interface
function for the Hotel ATTCON (maximum two sets of Hotel ATTCON per card), PM function (controlling
of Hotel ATTCON and exchanging of control commands with the CPU), PB/DP sending function (sending
of PB signals or DP signals under control of the PM), receiving data (Hotel ATTCON Call Termination
Information) link interface function, etc.

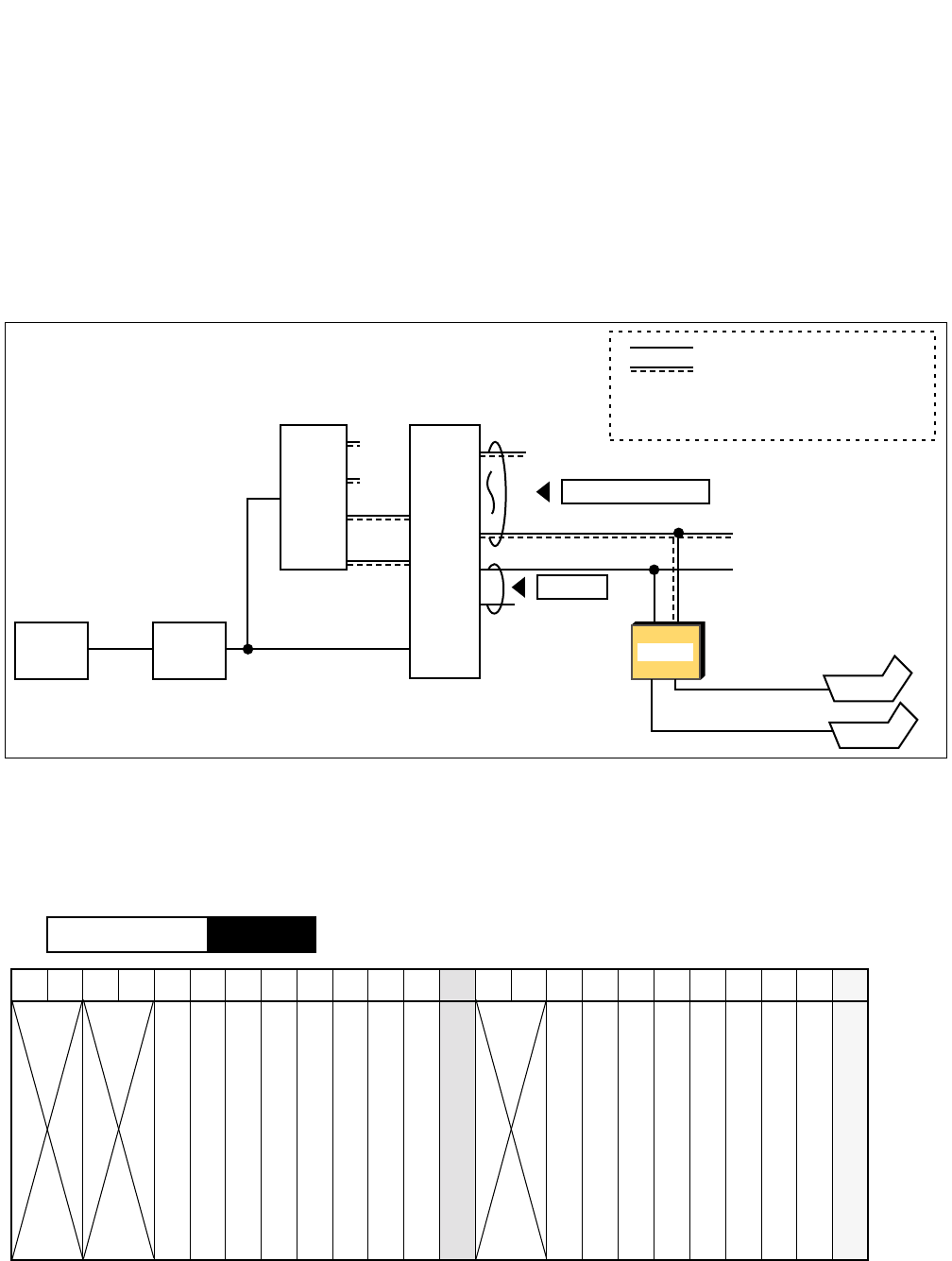

Figure 3-49 Location of PA-CS08 (HMATI) Card in the System
2. Mounting Location/Condition
The PA-CS08 (HMATI) card can be mounted in the shaded slots as shown below.
CPU GT
TDSW
MUX
2M PCM Highway
PM Bus
ATTENDANT
CONSOLE (×2)
: Control Line
: Speech Path
I/O Local Bus: Input/Output Local Bus
PM Bus : Port Microprocessor Bus
HMATI
PIM
Mounting Module
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23
HMATI
HMATI
