Technical data

05/02 AWB2725-1452GB

26

Relay output module

Type XIOC-12DO-R

Output type Relay output

Output voltage 100/240 V AC, 24 V DC

Switching current, minimum 1 mA

Maximum load current

Per circuit 2A

Per common potential terminal 5 A

Output signal delay

OFFl ON F 10 ms

ON l OFF

F 10 ms

Number of output channels 12 channels/module

Number of channels with common reference potential 12 channels per reference potential

1)

Overvoltage protection External

Fuse External

Electrical isolation Through optocouplers

Output indication By LED (green)

External connection

Plug-in terminal block

Internal current consumption (5 V DC) Typ. 40 mA

External applied voltage

2)

(for relay operation)

24 V DC (+20 %, –15 %)

(max. 70 mA)

Weight

0.2 kg

1) The reference potential terminals are internally connected.

2) An external 24 V DC voltage must applied.

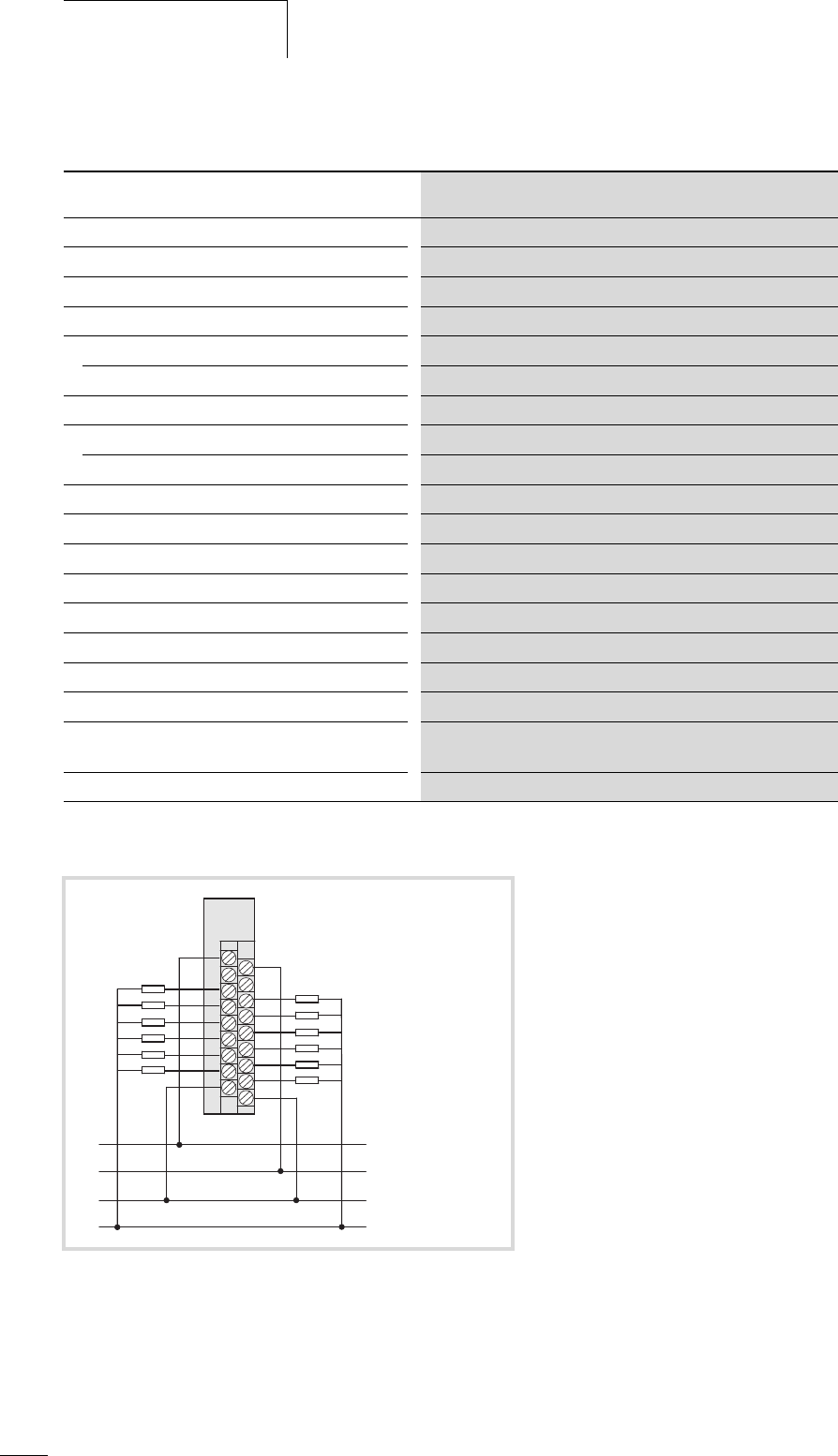

Figure 31: Terminal assignment for the XIOC-12DO-R module

+24 V H

0 V H

+24 V H , 100/240 V h

0 V, N

0

1

2

3

4

5

C

24 V H

6

7

8

9

10

11

C

0 V
