Test the LOST CD SWITCH
While the Pingo Rep is in running the SELF TEST cycle, hold the CD down with two fingers while the CD picker
attempts to grab it. The CD Picker will attempt to grab the CD twice. If it fails, you should get the message: DISK
LOST.
1
1
5
5
.
.
2
2
.
.
3
3
A
A
l
l
i
i
g
g
n
n
t
t
h
h
e
e
C
C
D
D
P
P
r
r
i
i
n
n
t
t
e
e
r
r
It is very important for a reliable and dependable operation of the Pingo Rep that the CD is dropped properly
centered on the center of the CD Printer tray. To center the CD Printer, select the Tools/Calibration option.
• Place one disc in the input CD Magazine (first magazine on the right hand side of the CD Printer tray).
• Move the CD Picker tip into the CD hub.
• To grab the CD, close the CD Picker.

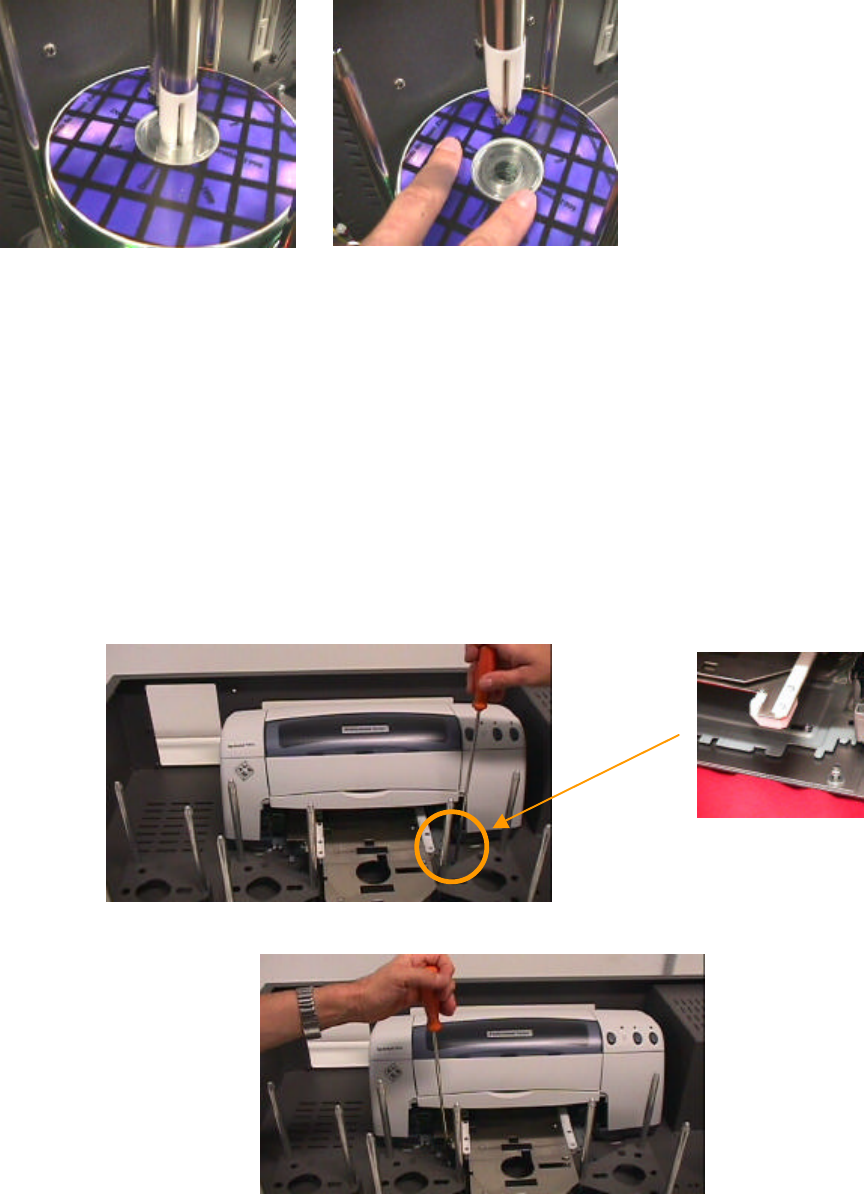

• Place the CD on the open tray of the CD Printer. Verify that the CD is properly centered on the tray as
Depicted below. If necessary, release the CD Printer alignment screws and center the tray.
