Alea Systems, Inc. Rev.1.13 Pingo-Photo Rep
User manual
28

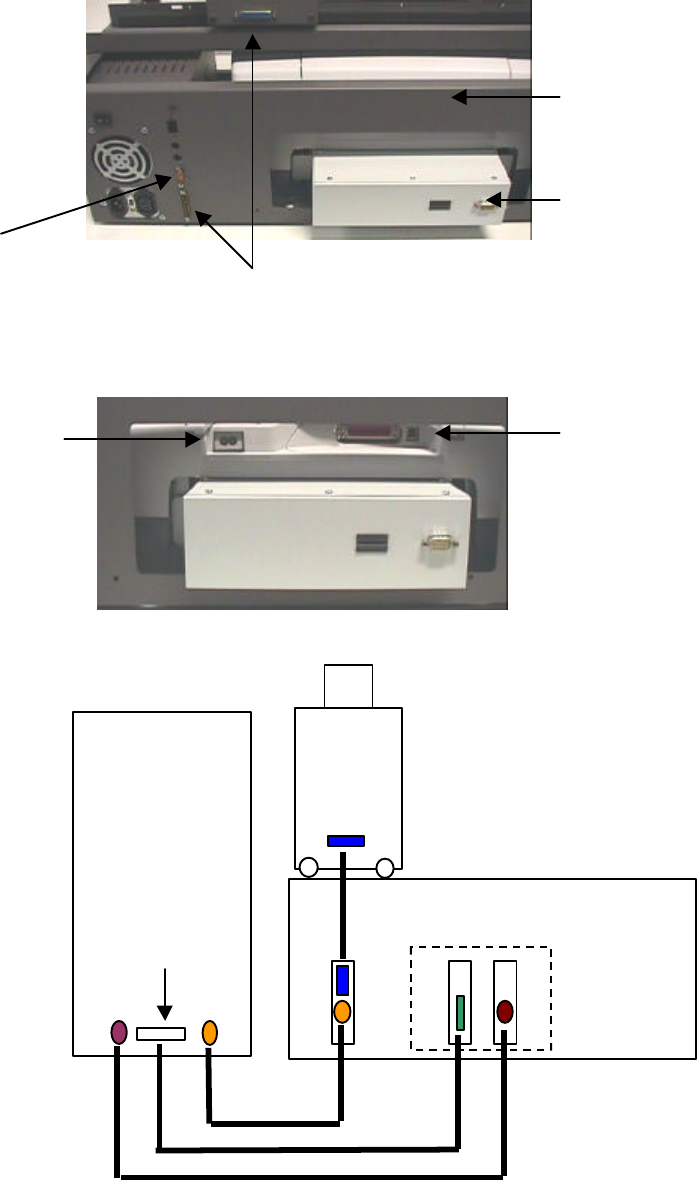

1. Connect the serial cable between the PC COM1 and the Pingo Rep Head control connector.
2. Connect the serial cable between the PC COM2 and the CD Printer DB9 connector.
3. Connect the printer Cable.
4. Power on the CD Printer and the Pingo Rep first, then the PC.
Status and tray control port
(connect to PC COM 2 port
with a DB9 F/F cross linked
modem cable)
USB and Centronics
Printer connector
Robotics control port
(connect to PC COM 1
port with a DB9 F/F null
modem cable)
Head cable connects between
Head and base connectors
Power connector
USB and Centronics
Printer connector
PC
Pingo Photo Rep
Printer port
COM2 COM1
