6Ć28 Removal and Replacement
C4699Ć90000

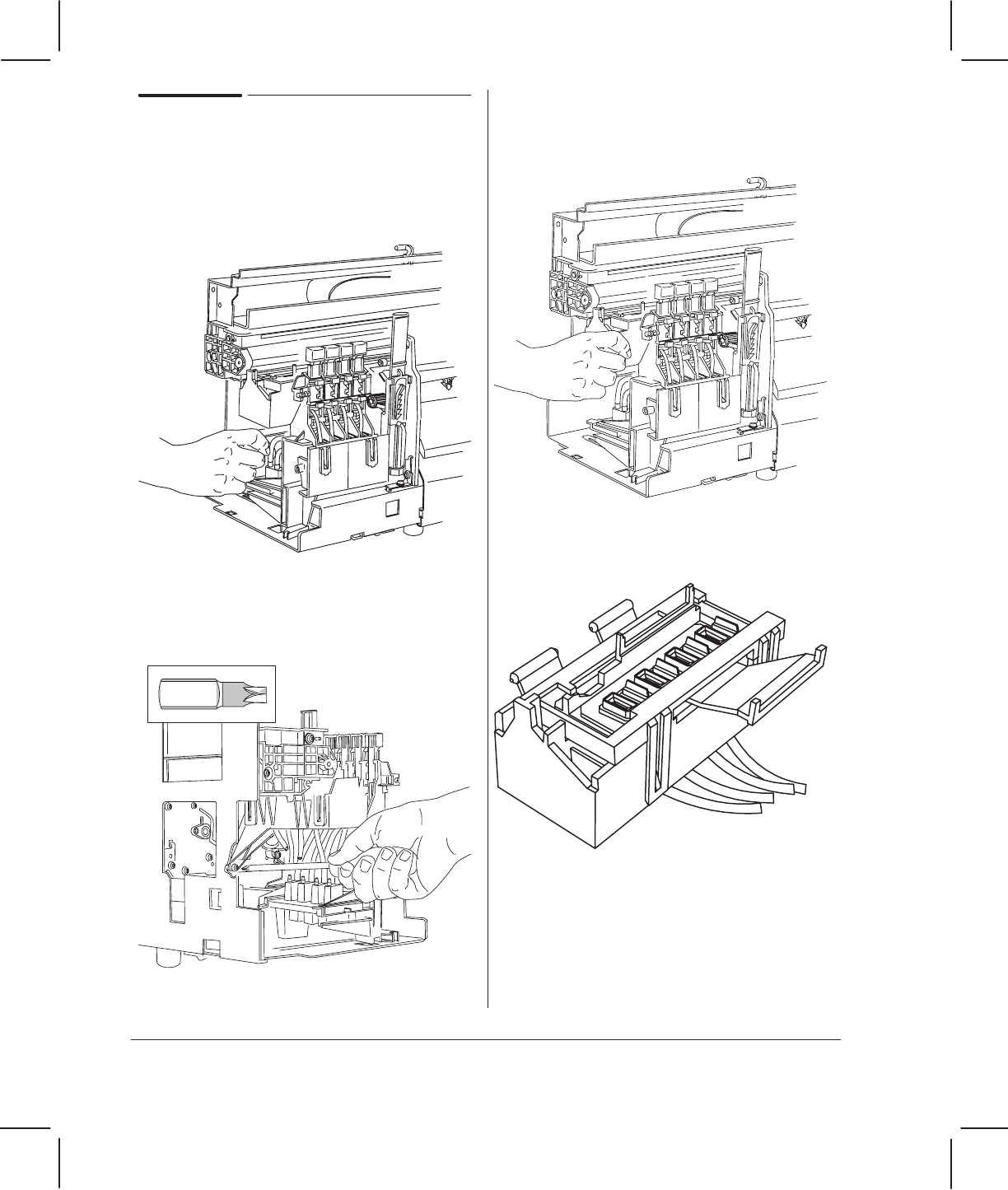

Removing the Service Station
1 Remove the left endĆcover ' page 6Ć9.
2 Disconnect the four short tubes from the
primer ink separator.
3 Remove the screw that attaches the
service station to the left sideĆplate.
Torx-20
4 Slide the service station to the left, and
remove it from the plotter.
The service station is one orderable assembly.
Do not open it.
Reassembling: Ensure that the cartridge
caps are clean, the wipers straight, and the
openings clear.
