G0572 Hanging Air Filter with Remote
-17-
Flush Mount
You can install the air filter unit in a confined shop
by mounting it
flush to a ceiling, wall, or table
using the flange mounts.
ONLY mount the air filter unit to load bearing
joists, wall studs, or table that can hold at
least 100 lbs. DO NOT mount the unit to
sheet rock walls, pressboard, paneling, or
honeycomb wall panels with expansion-
type fasteners like the ones shown in
Figure 9. The fasteners can tear out and the
air filter can fall. Ignoring this warning can
result in severe injury or death.
To install the air filter for flush mount
operation:
1. Locate the applicable load bearing studs or
supports in the wall or ceiling, and mark the
air filter unit bolt pattern on the wall or ceiling
(17
1
⁄4" from left-to-right and 31" from front-to-
rear).
Components and Hardware Needed Qty
Mounting Brackets .............................................
4
Hex Bolts
1
⁄4"-20 X
1
⁄4" ........................................ 8
Optional
1
⁄4" Lag Bolts ...................................................... 4
1
⁄4" Nuts .............................................................. 4
1
⁄4" Bolts ............................................................. 4
1
⁄4" Flat Washers ................................................ 4
Tools Needed
Wrench 10mm ...................................................
1

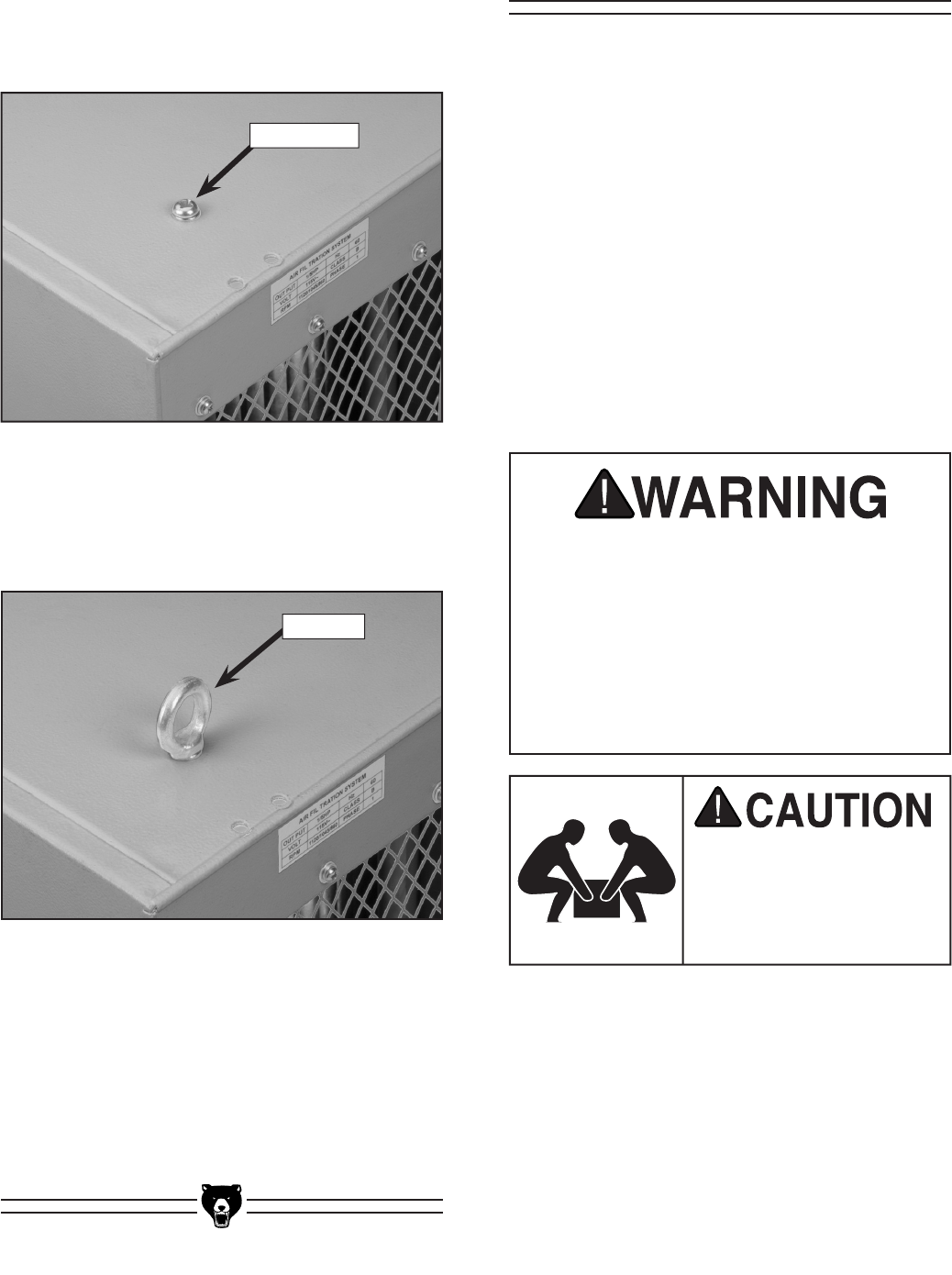

Figure 11. Eye bolt correctly seated.
4. Tighten the eye bolt until it is snug against the
air filter unit.
5. Repeat Steps 2-5 on the three remaining eye
bolts.
6. Raise and secure the air filter eye bolts to the
four hanging lines.
Eye Bolt
Figure 10. Plug screw.
Plug Screw
2. Remove the plug screw. Retain the screws,
because if you remove the eye bolts for the
flush mounting configuration, you must reinstall
these screws to seal the air filter unit. (
Figure
10).
3. Thread the eye bolt completely into the air filter
unit until the shoulder contacts the air filter unit
(Figure 11).
Get lifting assistance
before installation. At
64 pounds (shipping
weight), the Model G0572
air filter is a heavy load.
