CrossPoint / MAV Matrix Switchers • HTML Operation

Change the output volume level (audio models)

Userscanseteachoutput’svolumelevelthrougharangeofzerostepsof

attenuation(fullattenuation,minimumvolume)to64stepsofattenuation(no

attenuation,fullvolume)fromtheRGBandAudioSettingspage.

Change an output’s audio level setting as follows:

1. Clicktheoutputdropbox.Adropdownscrollboxappears(gure6-18).

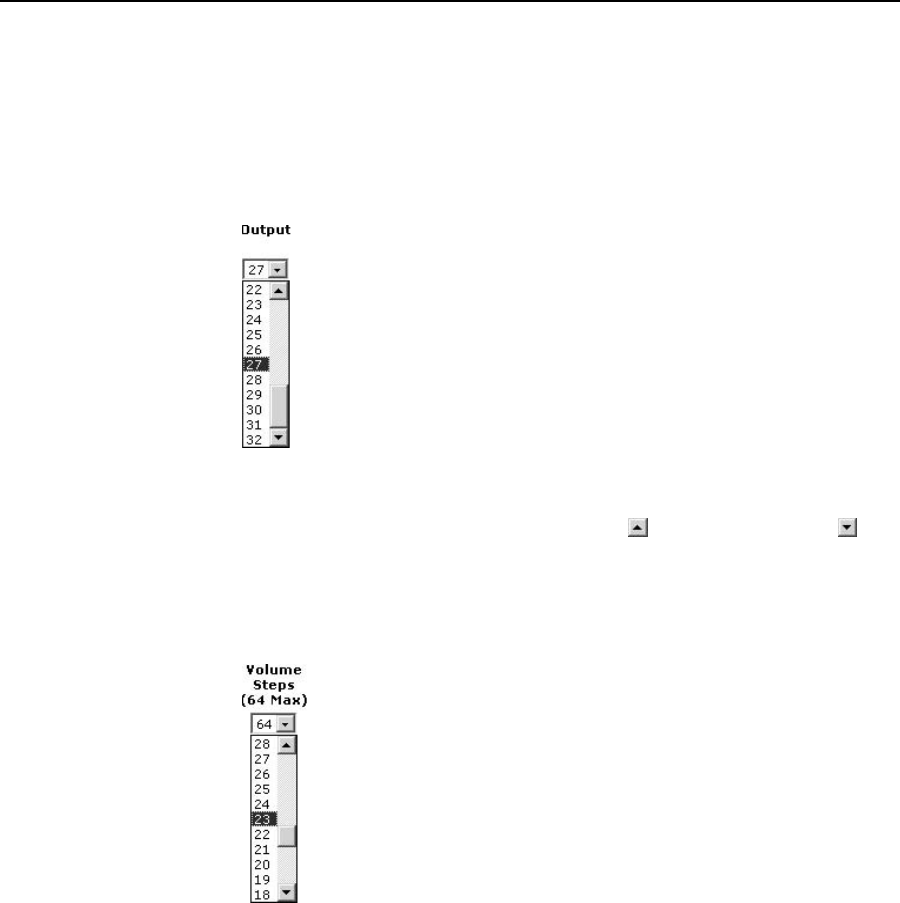

Figure 6-18 — Output selection drop box

2. Click and drag the slider or click the scroll up

button or scroll down

button until the desired output is visible.

3. Click the desired output.

4. ClicktheVolumeSteps(64Max)dropbox.Adropdownscrollboxappears

(gure6-19).

Figure 6-19 — Volume drop box

5. Click the desired output volume step value.

N

The table on the next page deﬁnes the value of each audio volume step.
