Matrix Software, cont’d

CrossPoint / MAV Matrix Switchers • Matrix Software

5-20

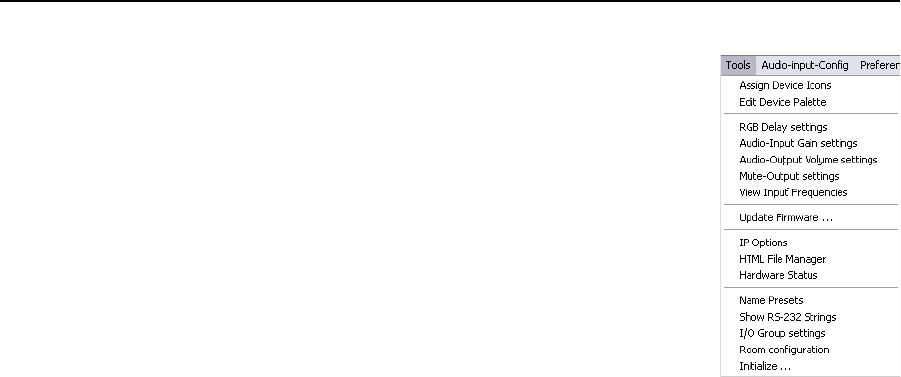

Tools menu

Assign device icons —Displaysthecompletesetofinput

and output device icons. You can drag any of these

icons to the input and output boxes.

Edit device palette — Allows you to add your own custom

device icon graphics.

RGB delay settings —Displaystheswitchinginterval

setting for each input and allows you to change them.

Audio-Input gain settings —Displaystheaudiogain

level setting for a single input or for all inputs and

allows you to change it. The level is expressed as

the magnitude (number of decibels) and polarity

(positive, gain or negative, attenuation) of the audio

adjustment.

Audio-Output volume settings —Displaystheaudiooutputlevelsettingfor

a single input or for all inputs and allows you to change it. The level is

expressed as a percentage of the input audio volume that is applied to the

output;0%isfullattenuation(audioissilent),100%isfullvolume.

Mute-Output settings—DisplaystheRGBDelay,Volume,andMuteAdjustscreen,

which allows you to mute and unmute individual or all video or audio

outputs.

View input frequencies —(DSVP)Displaystheinputhorizontalandvertical

frequencies for each input.

Update firmware — Allows you to replace the ﬁrmware that is coded on the

switcher’scontrolboardwithouttakingtheswitcheroutofservice.See

“Updatingrmware” on page 5-13.

IP options —AllowsyoutosetIPoptions.See“IPSettings/Optionswindow”on

page 5-7.

HTML file manager —DisplaysalistofHTMLlesinstalledontheswitcherand

allowsyoutouploadcustomlesfromaconnectedPCtotheswitcher.See

“UploadingHTMLles”onpage5-18.
