CrossPoint / MAV Matrix Switchers • Programmer’s Guide
Front panel Configuration port
N
This port is hardwired for RS-232 only.
Theoptional9-pinDto2.5mmminijackTRSRS-232cable,part#70-335-01
(gure4-2),canbeusedforconnectiontotheCongurationport.
6 feet
(1.8 m)
Part #70-335-01
5
1
9
6
Sleeve (Gnd)
Ring
Tip
9-pin D Connection TRS Plug
Pin 2 Computer's RX line Tip
Pin 3 Computer's TX line Ring
Pin 5 Computer's signal ground Sleeve

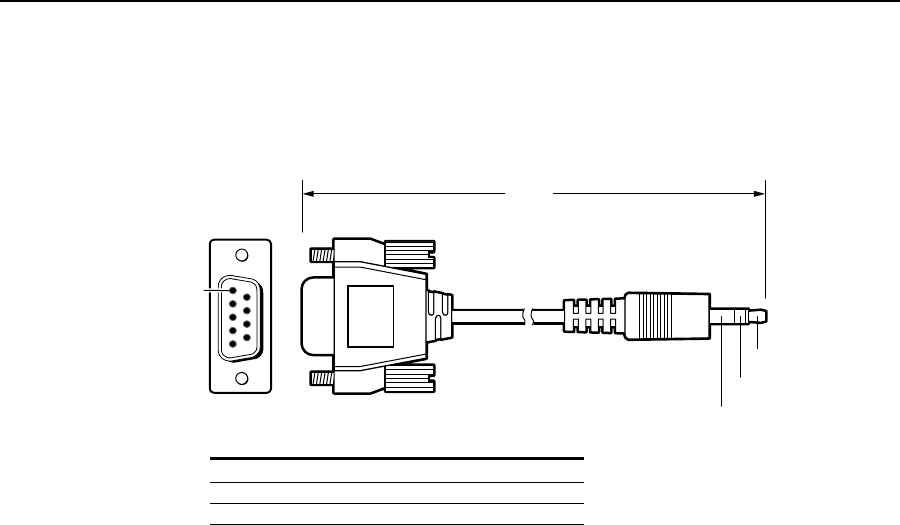

Figure 4-2 — Optional 9-pin TRS RS-232 cable
N
This port is independent of the rear panel Remote port and is not affected by
changes to the rear panel port’s protocol. This front panel port’s protocol can
be changed via SIS command control only. See the Set serial ports
parameters command in “Command/response table for IP -specific SIS
commands”, later in this chapter, to configure both ports under SIS control.
