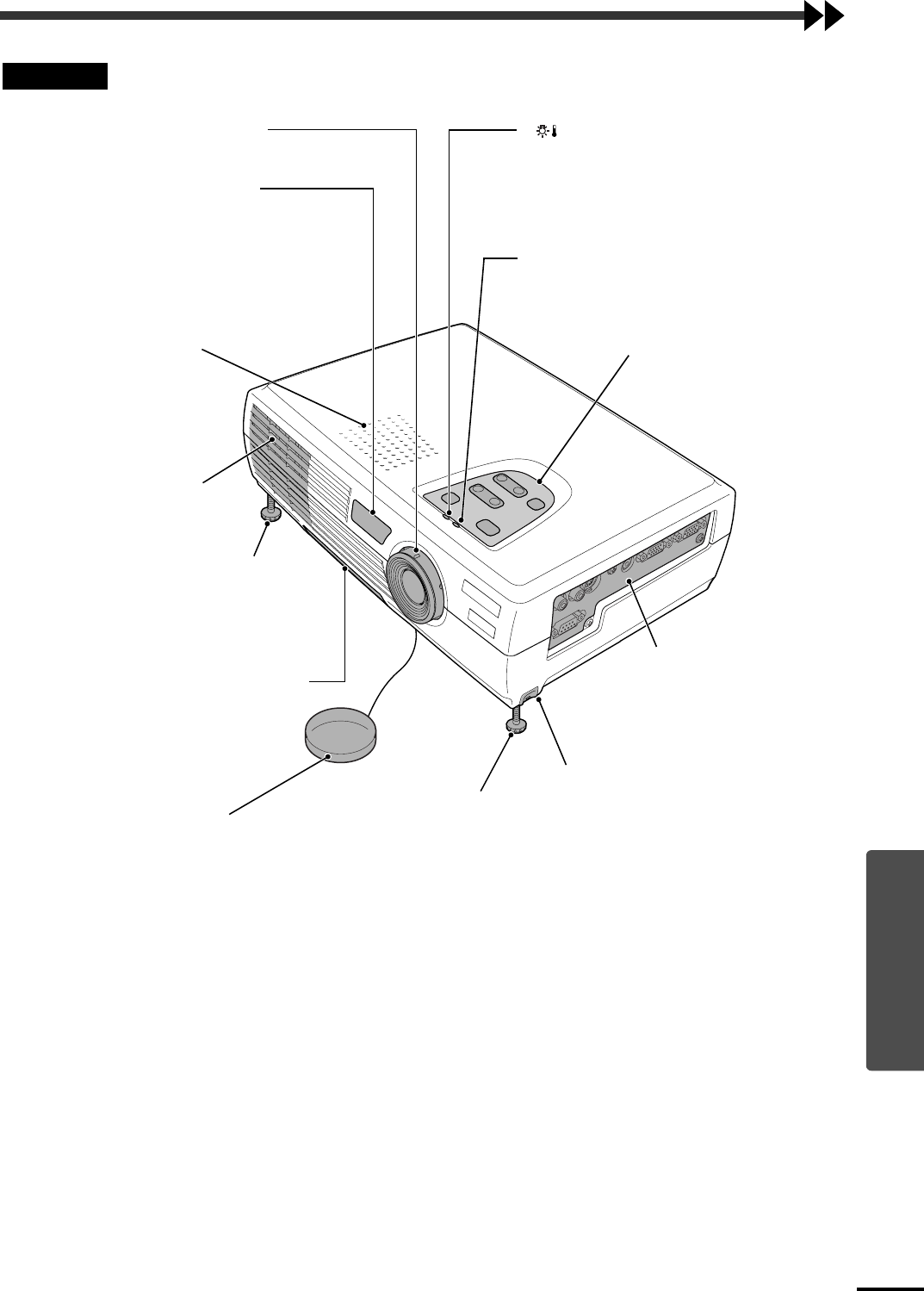

Part Names and Functions
Front/Top
Control panel (p.58)
Remote control
light-receiving area
(Quick Setup poster)
Receives signals from the
remote control.
Focus ring (p.12)
Adjusts the image focus.
Power indicator (p.36)
Flashes or lights in different colors to
indicate the operating status of the
projector.
(Warning) indicator
(p.35)
The color and on status (illuminated/
flashing) indicates problems with the
projector.
Front adjustable foot
(p.13)
Extend and retract to adjust
the projection angle.
Foot adjust button (p.13)
Another foot adjust button is
located on the right side.
Press both foot adjust buttons
when extending and retracting
the front adjustable feet.
Front adjustable foot
(p.13)
Extend and retract to adjust
the projection angle.
Speaker
Remote control holder
(Quick Setup poster)
Store the accessory remote
control in here when not
using it.
Lens cover
Attach when not using the
projector to prevent the lens
from becoming dirty or
damaged.
Air exhaust vent
Connection ports
(p.58)
