24 Setting Up the Projector
Connecting to Video Equipment
You can connect several video sources to the projector at the same
time. Before starting, look at your video equipment to determine its
available video output connections:
■ If your video player has an HDMI connector, see “Connecting an
HDMI Video Source” on page 25.
■ If your video player has a component video port (three connectors
labeled either Y/Cb/Cr or Y/Pb/Pr), see “Connecting a
Component Video Source” on page 28.
■ If your video player has a yellow RCA video output connector, or
if you’re using a composite cable with a BNC connector, see
“Connecting a Composite Video Source” on page 26.
■ If your video player has an S-video connector, see “Connecting an
S-Video Source” on page 27.
■ If your video player has an RGB video port (either a single
connector for a VGA monitor cable or three connectors labeled
R/G/B), see “Connecting an RGB Video Source” on page 29.

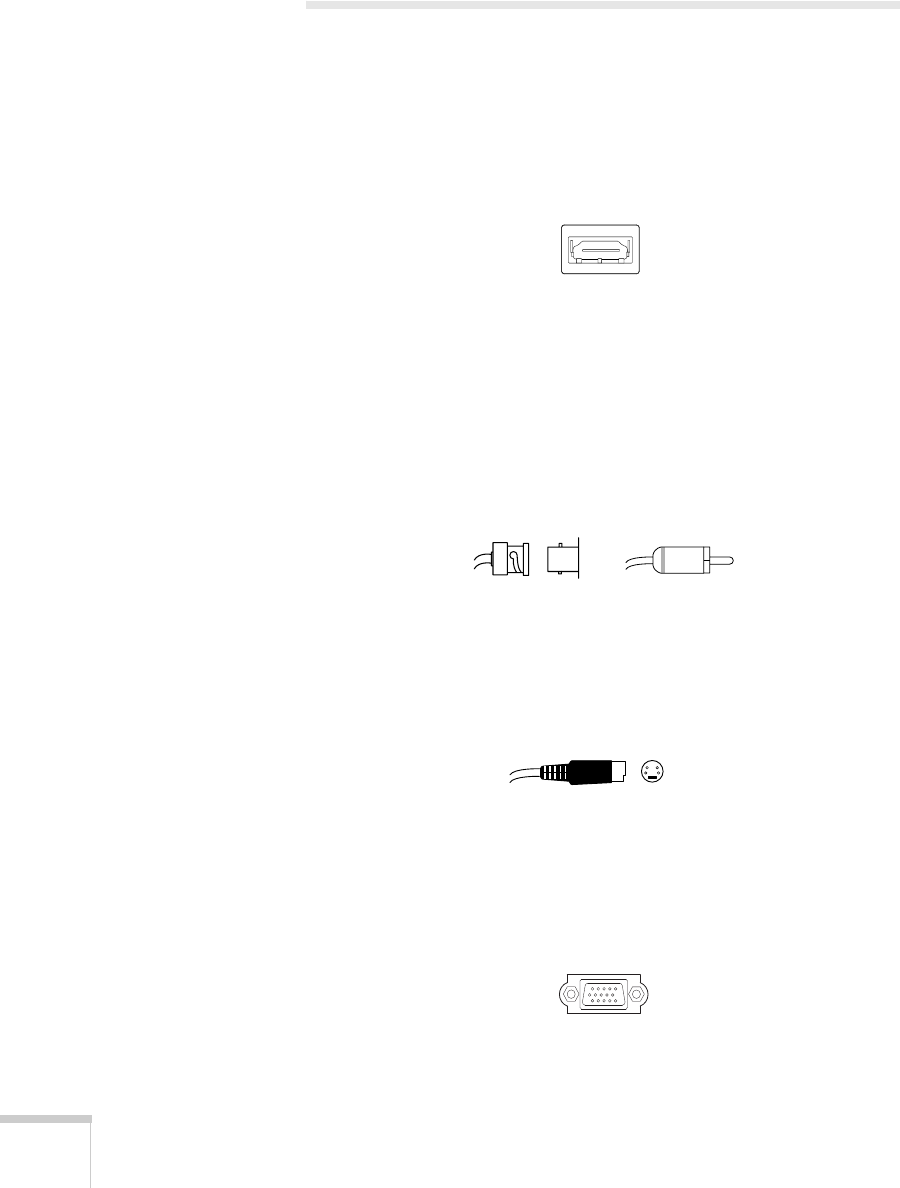

HDMI connector
BNC connector
(component or
composite video)
RCA connector
(composite video)
S-video
connector
VGA connector
(RGB video)
