DGS-3224TGR Gigabit Ethernet Switch User’s Guide
73

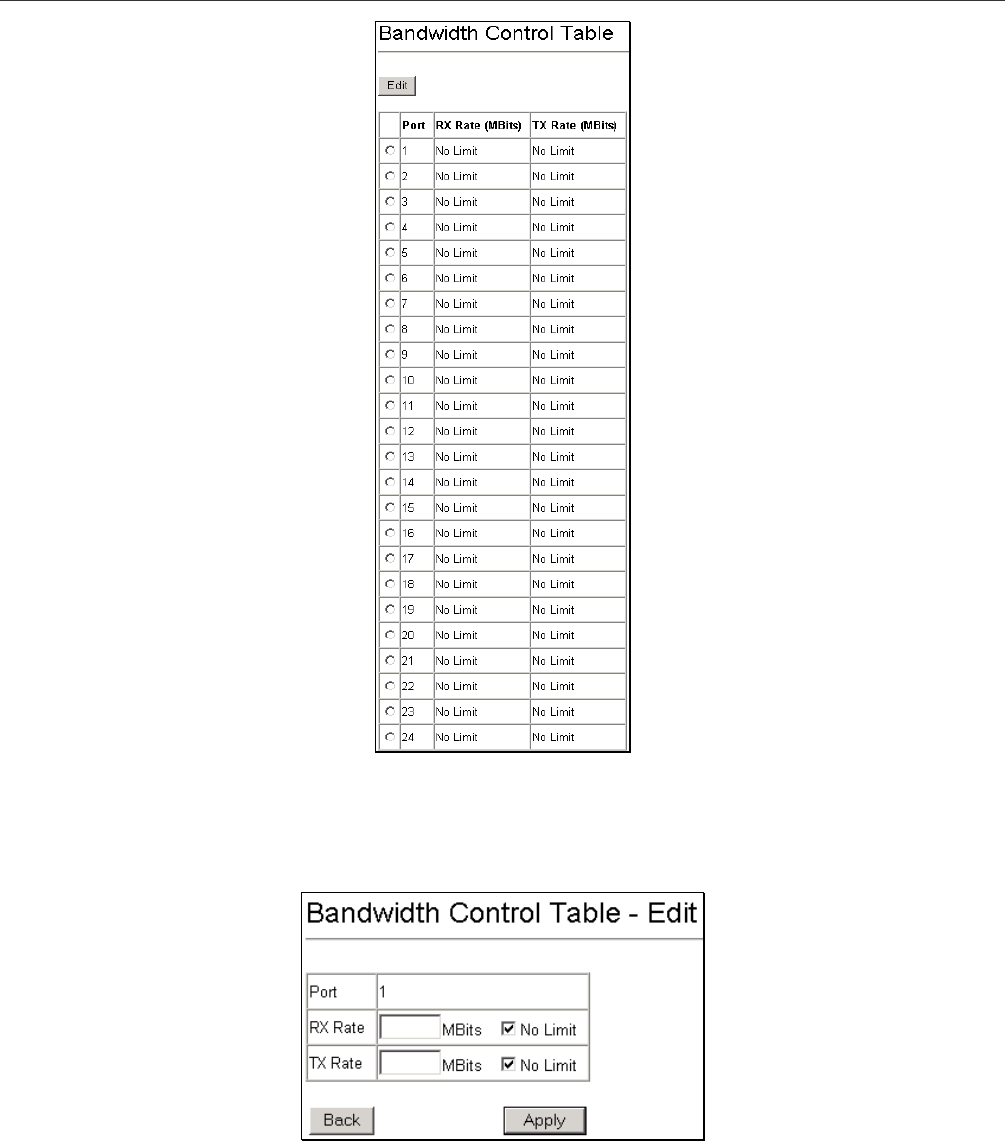

Figure 6- 56. Bandwidth Control Table window
To change the maximum allowed bandwidth for a given port in the Bandwidth Control Table window, click the selection
button in the far left column that corresponds to the port you want to configure and click the Edit button. A new window
opens:
Figure 6- 57. Bandwidth Control Table – Edit window
To limit either the Rx or Tx rates, deselect the No Limit check box and enter the desired rate. Rates can be expressed using
whole numbers up to the maximum available rate for the port.
Access Profile Mask Setting
Access profiles allow you to establish criteria to determine whether or not the switch will forward packets based on the
information contained in each packet’s header. These criteria can be specified on a basis of VLAN, MAC address or IP
address.
