DGS-3224TGR Gigabit Ethernet Switch User’s Guide
64
Priority (0-61440) <32768>
A Bridge Priority can be from 0 to 61440. Zero is equal to the highest Bridge
Priority.
STP Version
Choose RSTP (default) or STP compatible. Both versions use STP parameters
in the same way. RSTP is fully compatible with IEEE 802.1d STP and will
function with legacy equipment.
TX Hold Count (1-10) <3>
This is the maximum number of Hello packets transmitted per interval. The
count can be specified from 1 to 10. The default value is 3.
Forwarding BPDU
This drop-down menu allows you to configure whether to forward BPDU when
the Spanning Tree Protocol is disabled.
STP Port Settings

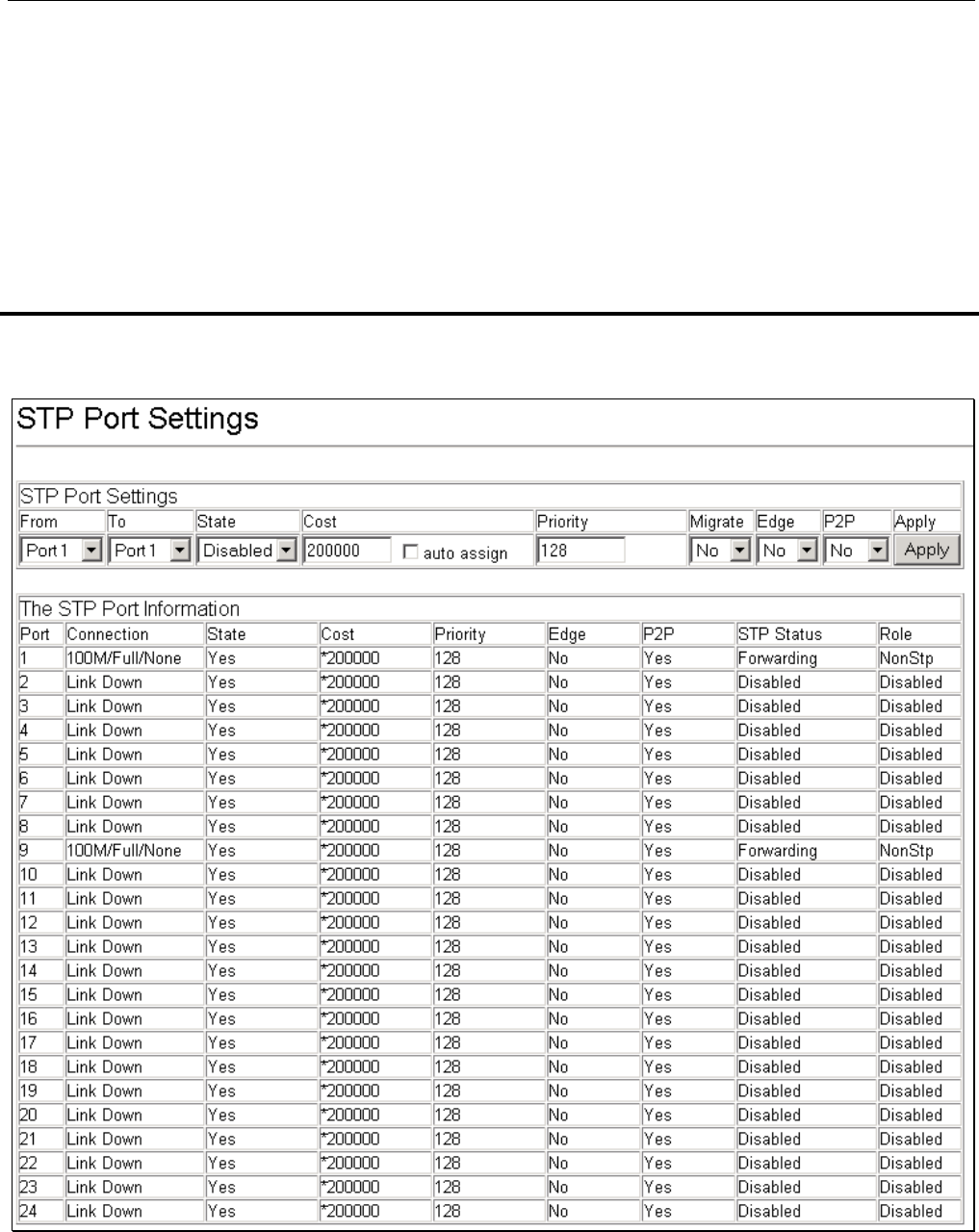

Figure 6- 45. STP Port Settings window
To configure Spanning Tree Protocol functions for individual ports, enter the desired information in the fields on this
window and then click Apply.
