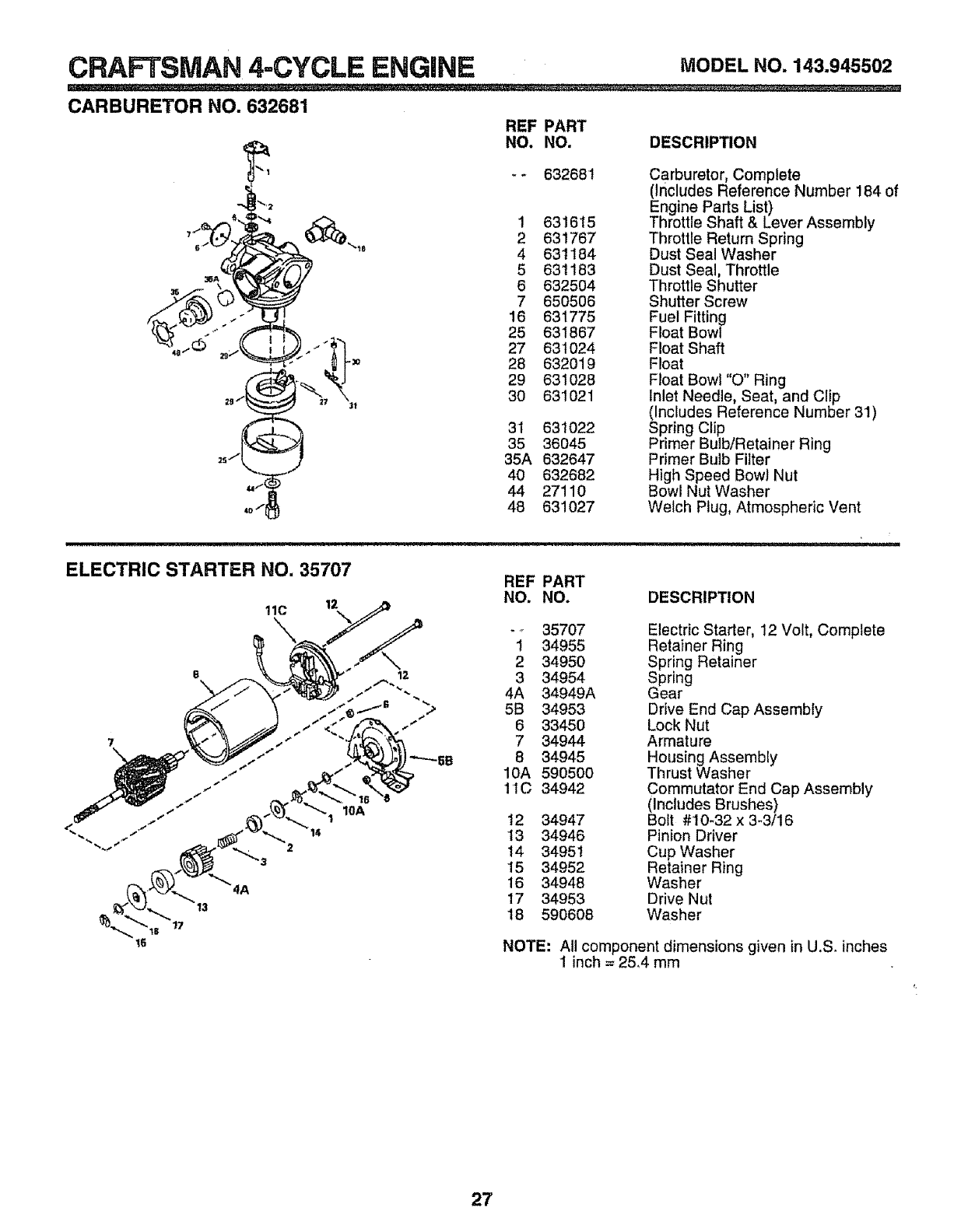

CRAFTSMAN 4=CYCLE ENGINE MODELNO.143.945502
CARBURETOR NO. 632681
REF PART
NO. NO. DESCRIPTION
-- 63268t
1 631615
2 63'1767
4 631184
5 631183
6 632504
7 650506
16 631775
25 631867
27 63t 024
._o 28 632019
29 631028
3O 631021
3t
3I 631022
35 36045
35A 632647
40 632682
44 27110
48 631027
Carburetor, Complete
(Includes Reference Number 184 of
Engine Parts List)
Throttle Shaft & Lever Assembly
Throttle Return Spring
Dust Seal Washer
Dust Seal, Throttle
Throttle Shutter
Shutter Screw
Fuel Fitting
Float Bowl
Float Shaft
Float
Float Bowl "0" Ring
Inlet Needle, Seat, and Clip
(Includes Reference Number 31)
Spring Clip
Primer Bulb/Retainer Ring
Primer Bulb Filter
High Speed Bow! Nut
Bowl Nut Washer
Welch Plug, Atmospheric Vent
ELECTRIC STARTER NO. 35707
110 12
7
\
16
10A
REF PART
NO. NO. DESCRIPTION
- _ 35707 Electric Starter, 12 Volt, Complete
1 34955 Retainer Ring
2 34950 Spring Retainer
3 34954 Spring
4A 34949A Gear
5B 34953 Drive End Cap Assembly
6 33450 Lock Nut
7 34944 Armature
8 34945 Housing Assembly
10A 590500 Thrust Washer
11C 34942 Commutator End Cap Assembly
(Includes Brushes)
12 34947 Bolt #10-32 x 3-3/16
13 34946 Pinion Driver
!4 34951 Cup Washer
15 34952 Retainer Ring
16 34948 Washer
17 34953 Drive Nut
18 590608 Washer
NOTE: All component dimensions given in U.S. inches
1 inch = 25°4 mm
27
