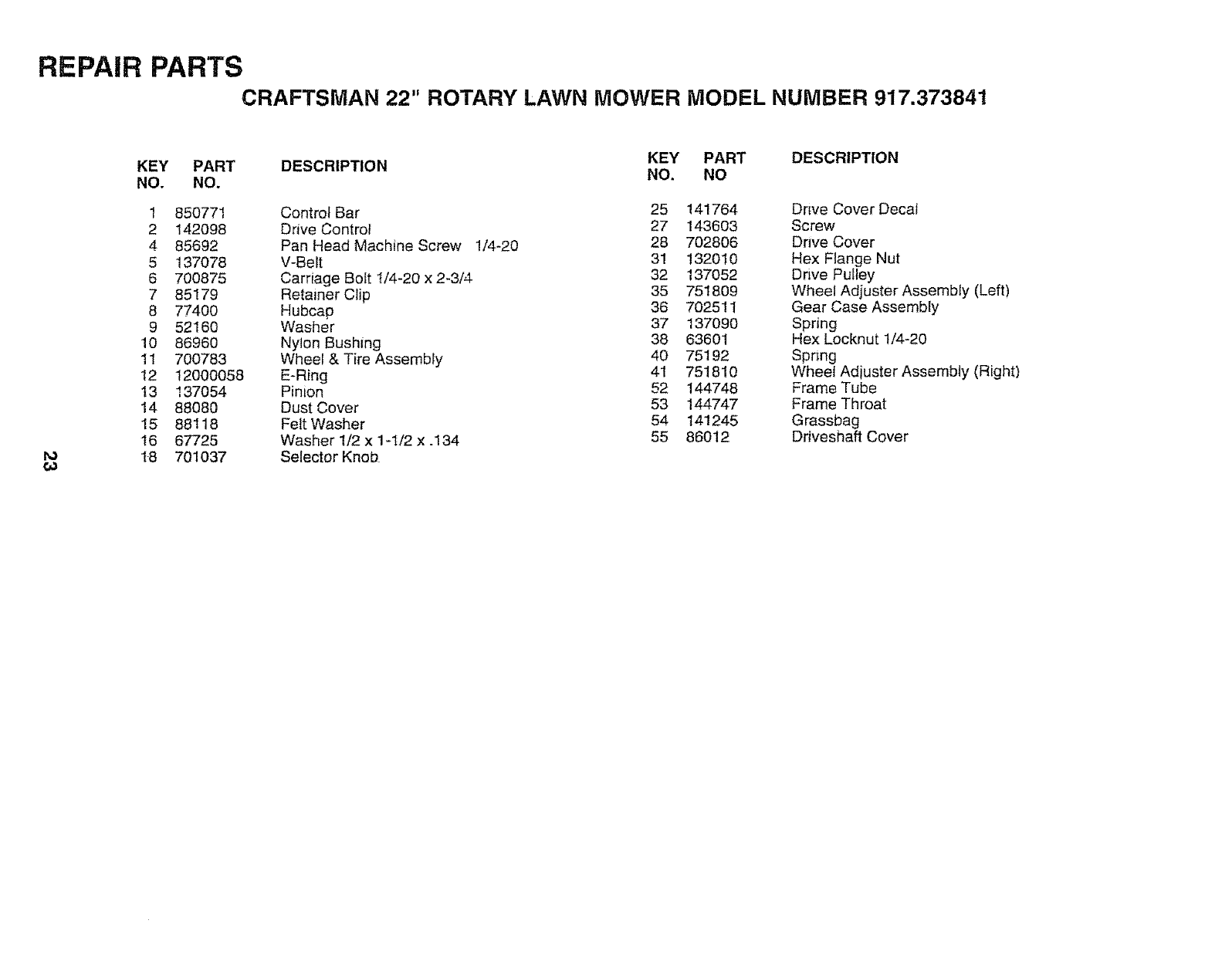

REPAIR PARTS
CRAFTSMAN 22" ROTARY LAWN MOWER MODEL NUMBER 917.373841
KEY PART DESCRIPTION
KEY PART DESCRIPTION
NO. NO. NO. NO
1 850771 Control Bar 25 141764 Drive Cover Decal
2 142098 Drive Control 27 143603 Screw
4 85692 Pan Head Machine Screw 1/4-20 28 702806 Drive Cover
5 137078 V-Belt 3! 132010 Hex Flange Nut
6 700875 Carriage Bolt 1/4-20 x 2-3/4 32 137052 Drive Pulley
7 85179 Retazner Clip 35 751809 Wheel Adjuster Assembly (Left)
8 77400 Hubcap 36 702511 Gear Case Assembly
9 52160 Washer 37 137090 Spring
10 86960 Nyion Bushing 38 63601 Hex Lecknut t/4-20
11 700783 Wheel & Tire Assembly 40 75192 Spnng
12 12000058 E-Ring 41 751810 Wheel Adjuster Assembly (Right)
13 137054 Pinion 52 144748 Frame Tube
14 88080 Dust Cover 53 144747 Frame Throat
15 88118 Felt Washer 54 t41245 Grassbag
16 67725 Washer t/2 x 1-I/2 x.134 55 86012 Driveshaft Cover
18 701037 Selector Knob
