IV. THE JAZZY 1122
ELECTRONICS TRAY
The electronics tray is located on the rear of your Jazzy. The electronics tray is located underneath the rear sliding
door. The electronics tray consists of the ammeter, the battery charger plug, the main circuit breaker, accessory
connector (optional equipment), and the controller harness connectors.
n Ammeter: The ammeter displays the chargers current output in amps. For more information, see IX. Bat-
teries and Charging in this manual.
n Battery Charger Plug: This plug is used whenever your battery needs recharging.
n Main Circuit Breaker: The main circuit breaker is a safety feature built into your Jazzy. When the batteries
and the motors are heavily strained (e.g., from excessive loads), the main circuit breaker trips to prevent
damage to the motors and the electronics. If the circuit trips, allow your Jazzy to rest for approximately one
minute. Next, push in the circuit breaker button, turn on the joystick controller, and continue normal operation.
If the main circuit breaker continues to trip repeatedly, contact your authorized Pride provider.
n Accessory Connector (Optional): This is where the optional harness connects to the controller (power seat,
lighting).
n Controller Harness Connectors: This is where the joystick connects to the motors, batteries, and charger.
If your Jazzy is equipped with a Remote Plus or Europa controller, there is only one connector on the tray. If
your Jazzy is equipped with a Pilot controller, there are two connectors on the tray. See figures 3 through 5 to
view the controller harness connectors.
n Power Seat Connector (Optional): This is for the optional power seat switch. See figure 6.

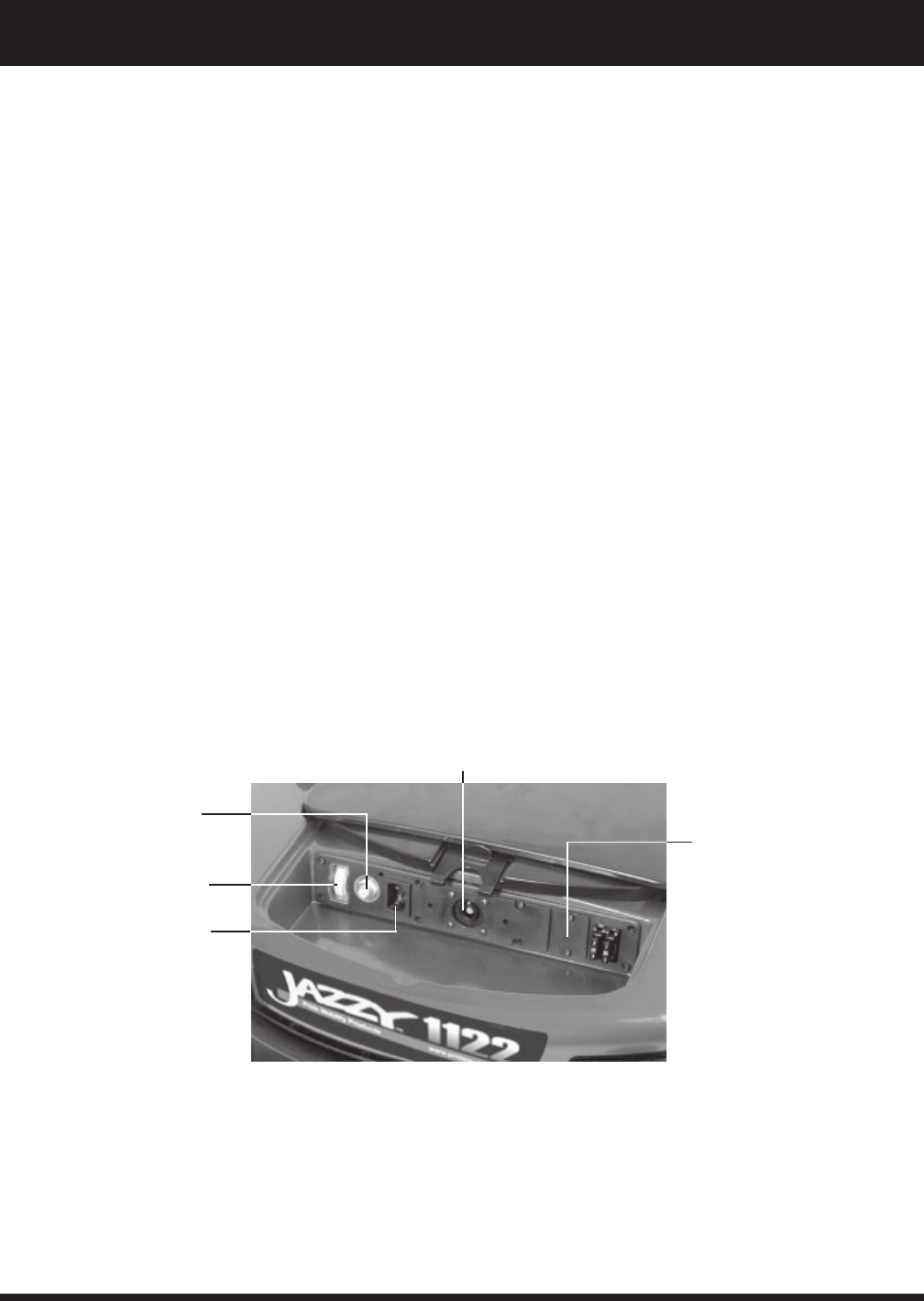

Figure 6. Electronics Tray
AMMETER
OPTIONAL POWER SEAT
CONNECTOR LOCATION
REMOTE PLUS CONTROLLER HARNESS CONNECTOR
BATTERY CHARGER PLUG
MAIN
CIRCUIT
BREAKER
