TPS (THROTTLE POSITION SENSOR) SYSTEM
8. Tighten:
Screw (TPS) 1
9. Stop the engine.
1
EC694000

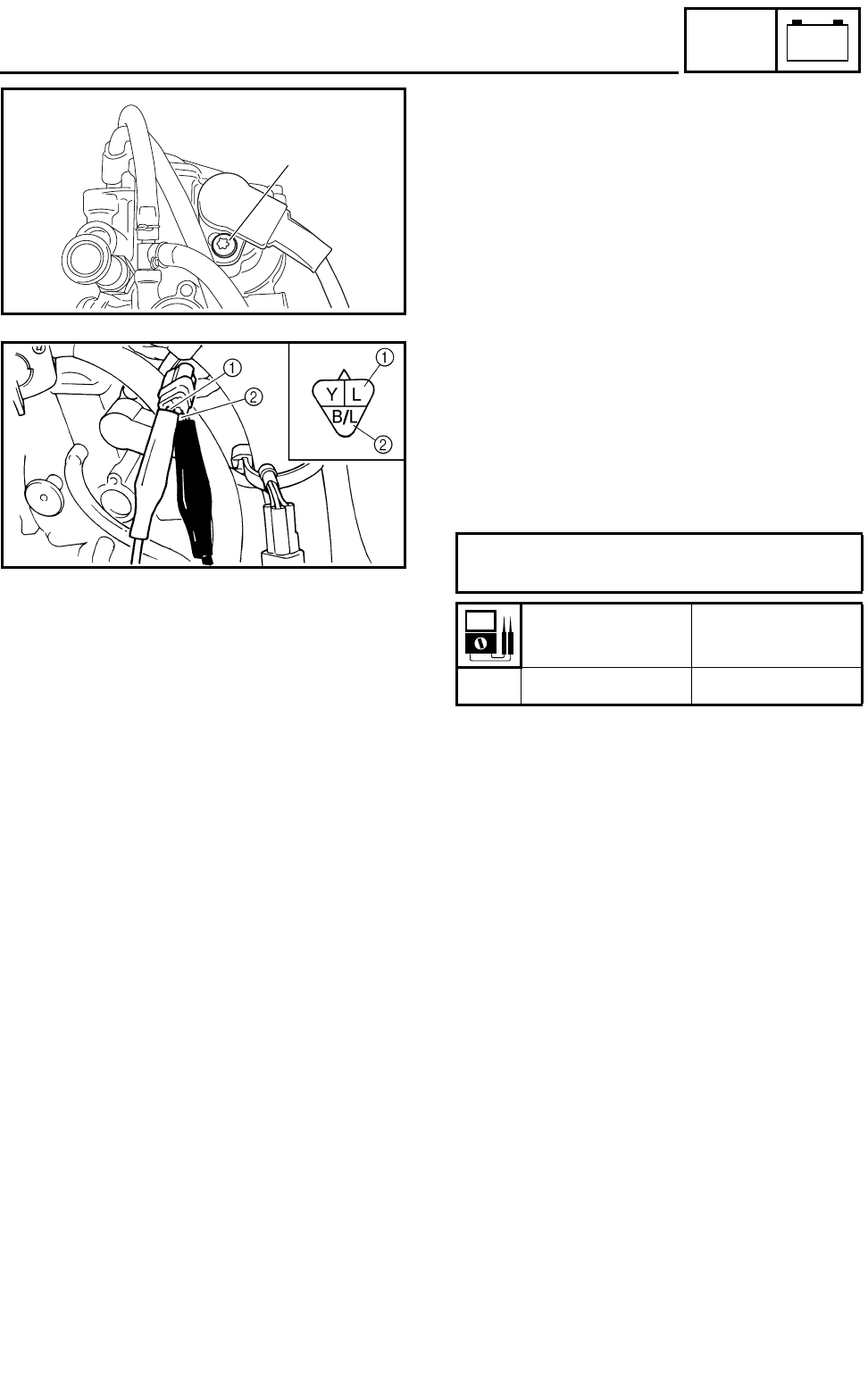

TPS INPUT VOLTAGE INSPECTION
1. Disconnect the TPS coupler.
2. Start the engine.
3. Inspect:
TPS input voltage
Out of specification Replace the CDI
unit.
Tester (+) lead
Blue lead
1
Tester () lead
Black/Blue lead
2
TPS input
voltage
Tester selector
position
4 ~ 6 V DCV-20
