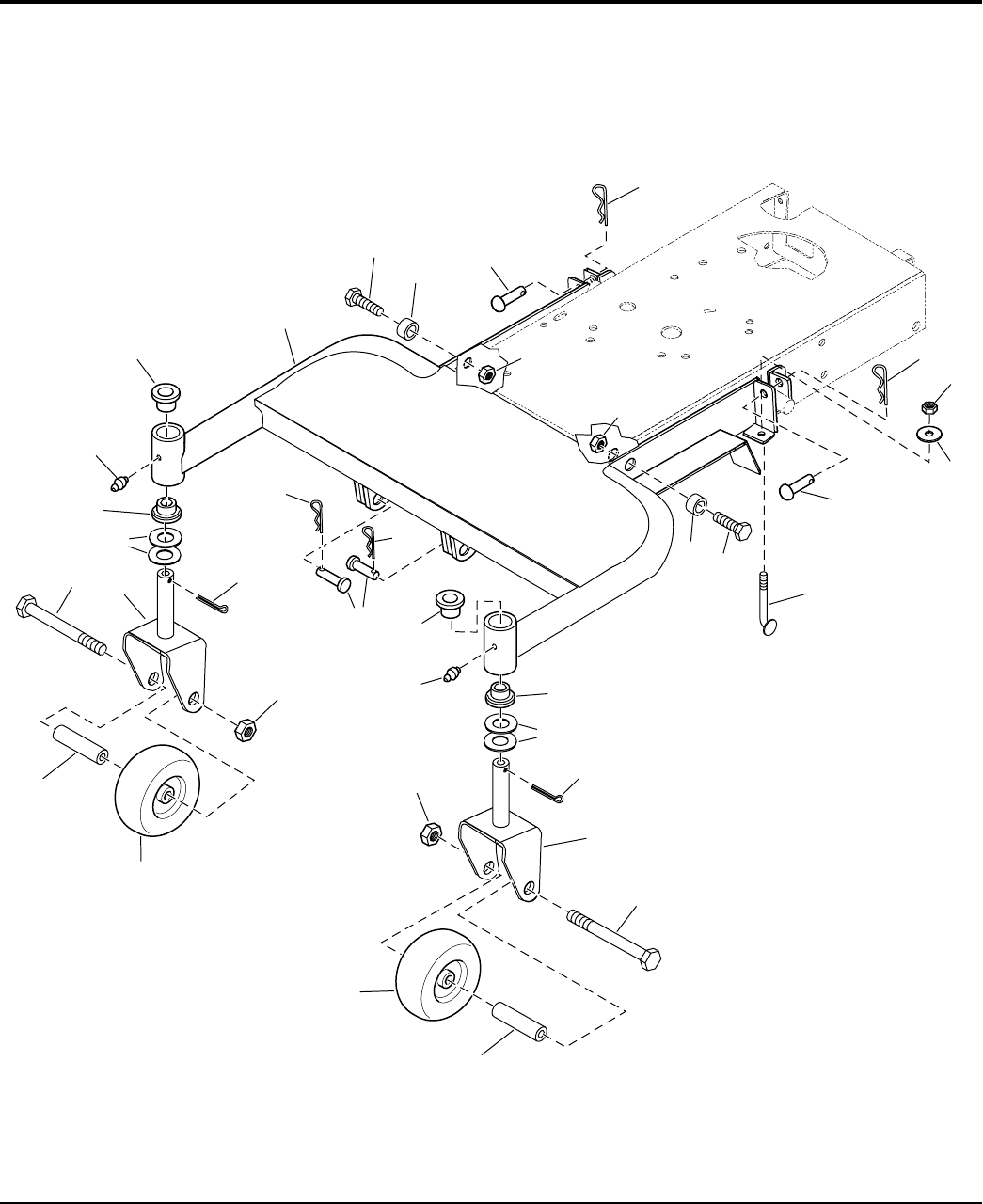

Mower Frame Group - with Height Adjustment
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
11
13
12
16
12
1
7
5
9
2
8
6
3
10
1
2
3
5
5
5
10
9
8
11
12
12
614
15
15
16
13
6
64
64
19
18
17
SL985961
The above parts group applies to the following Mfg. Nos.:
2005
32
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694772 - Lancer
1694785 - 4416XL
1694786 - Lancer
1694787 - 4416XL
TP 400-4206-01-LN-SM
