Location of Controls

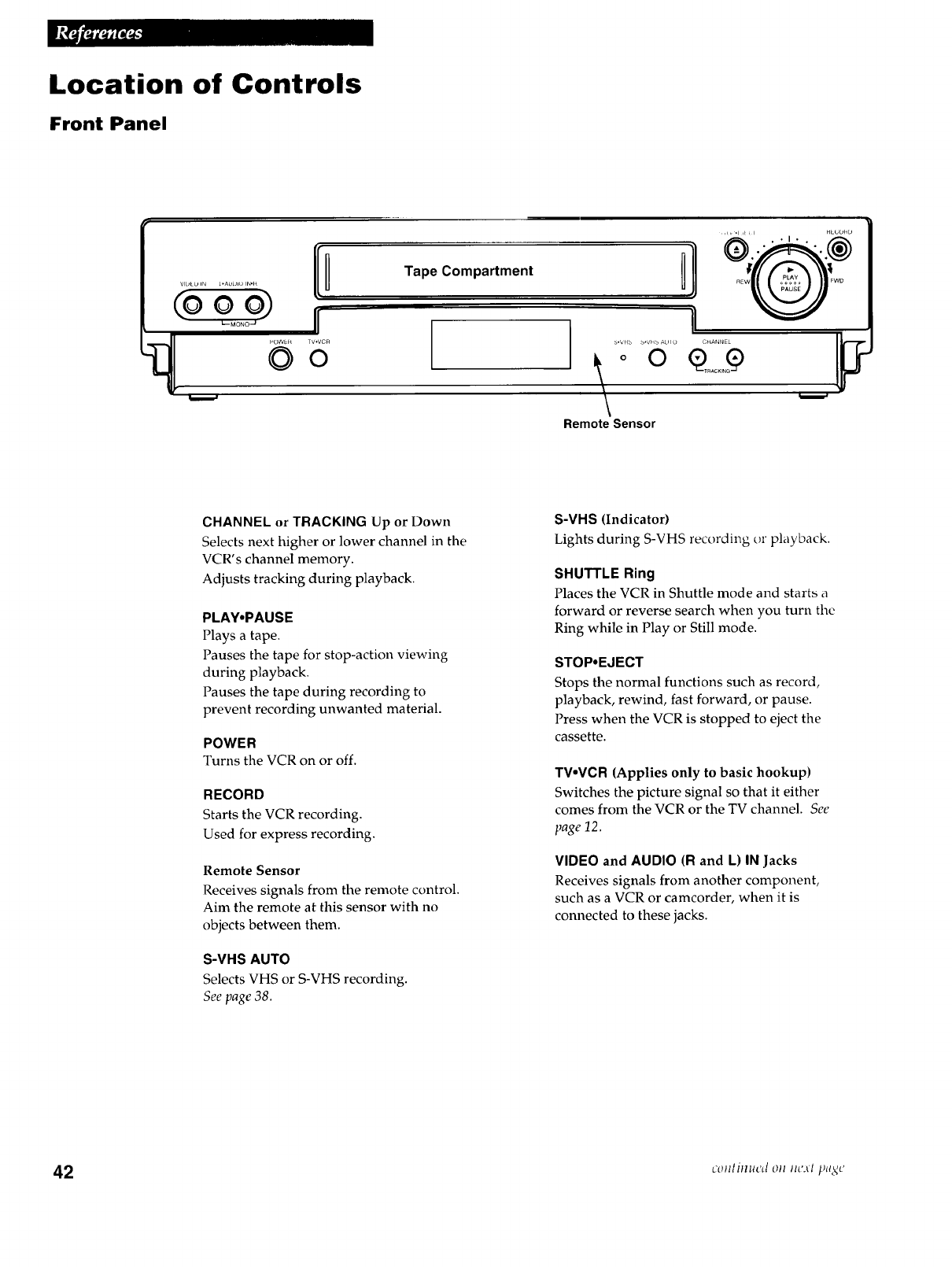

Front Panel
VIDLU IN [,AUiglU IN.H
(ooo)
I---MONOJ
Tape Compartment
_*_HS S)_HS AUIO
Remote Sensor
n ,EwQFwO
CHAN_EL _
Q9......
CHANNEL or TRACKING Up or Down
Selects next higher or lower channel in the
VCR's channel memory.
Adjusts tracking during playback.
PLAY.PAUSE
Plays a tape.
Pauses the tape for stop-action viewing
during playback.
Pauses the tape during recording to
prevent recording unwanted material.
POWER
Turns the VCR on or off.
RECORD
Starts the VCR recording.
Used for express recording.
Remote Sensor
Receives signals from the remote control.
Aim the remote at this sensor with no
objects between them.
S-VHS AUTO
Selects VHS or S-VHS recording.
See page 38.
S-VHS (Indicator)
Lights during S-VHS recording or playback.
SHUTTLE Ring
Places the VCR in Shuttle mode and starts a
forward or reverse search when you turn the
Ring while in Play or Still mode.
STOP.EJECT
Stops the normal functions such as record,
playback, rewind, fast forward, or pause.
Press when the VCR is stopped to eject the
cassette.
TV.VCR (Applies only to basic hookup)
Switches the picture signal so that it either
comes from the VCR or the TV channel. See
page 12.
VIDEO and AUDIO (R and L) IN Jacks
Receives signals from another component,
such as a VCR or camcorder, when it is
connected to these jacks.
