User’s Manual of WGSD-1022/WGSD-8000
- 49 –

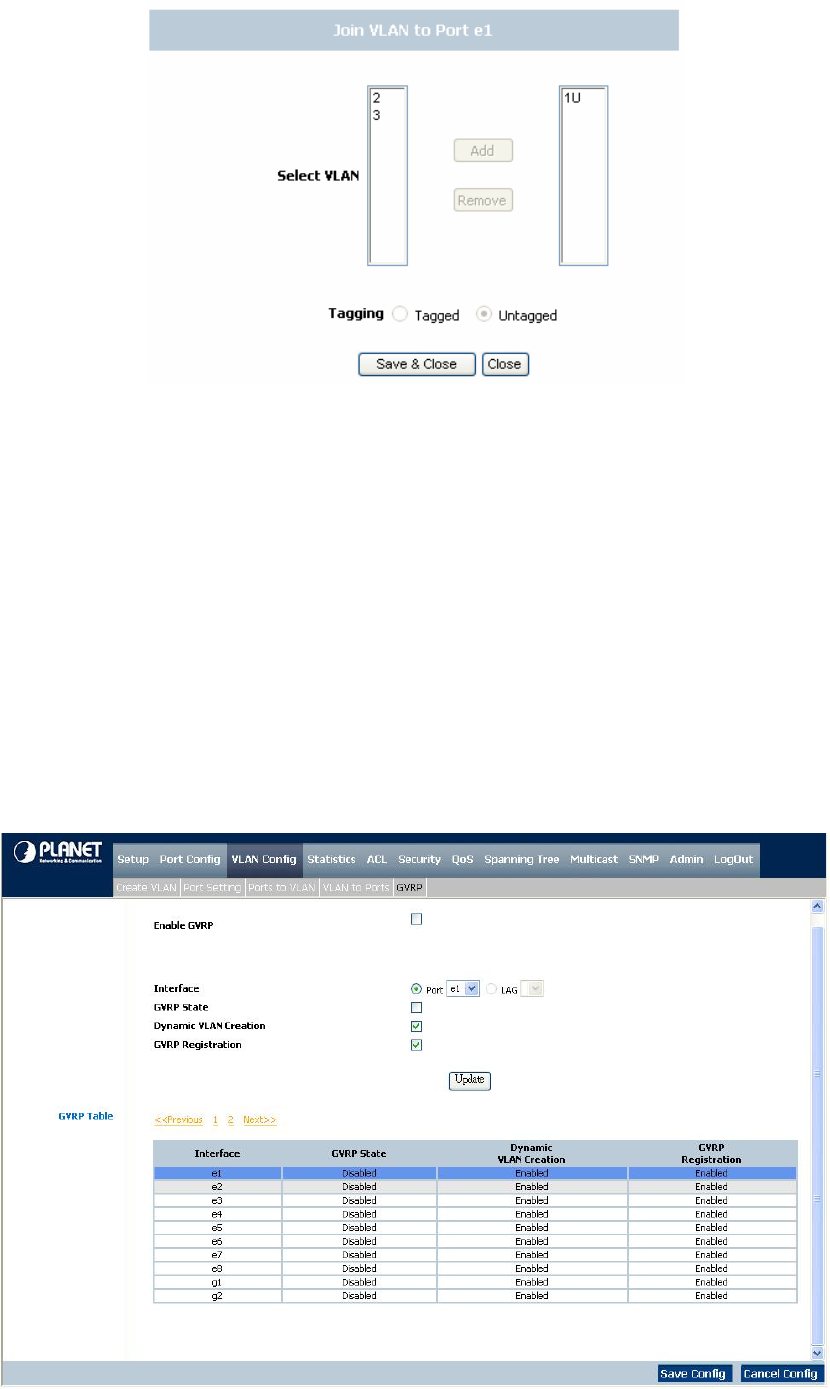

Figure 4-14 Join VLAN to Port screen
4.4.5 GVRP
GARP VLAN Registration Protocol (GVRP) is specifically provided for automatic distribution of VLAN membership information
among VLAN-aware bridges. GVRP allows VLAN-aware bridges to automatically learn VLANs to bridge ports mapping, without
having to individually configure each bridge and register VLAN membership.
The Global System LAG information displays the same field information as the ports, but represent the LAG GVRP information.
The GVRP screen (refer to 4-15) is divided into two areas, GVRP and GVRP Table. The field definitions for both areas are the
same.
Figure 4-15 GVRP configuration screen
