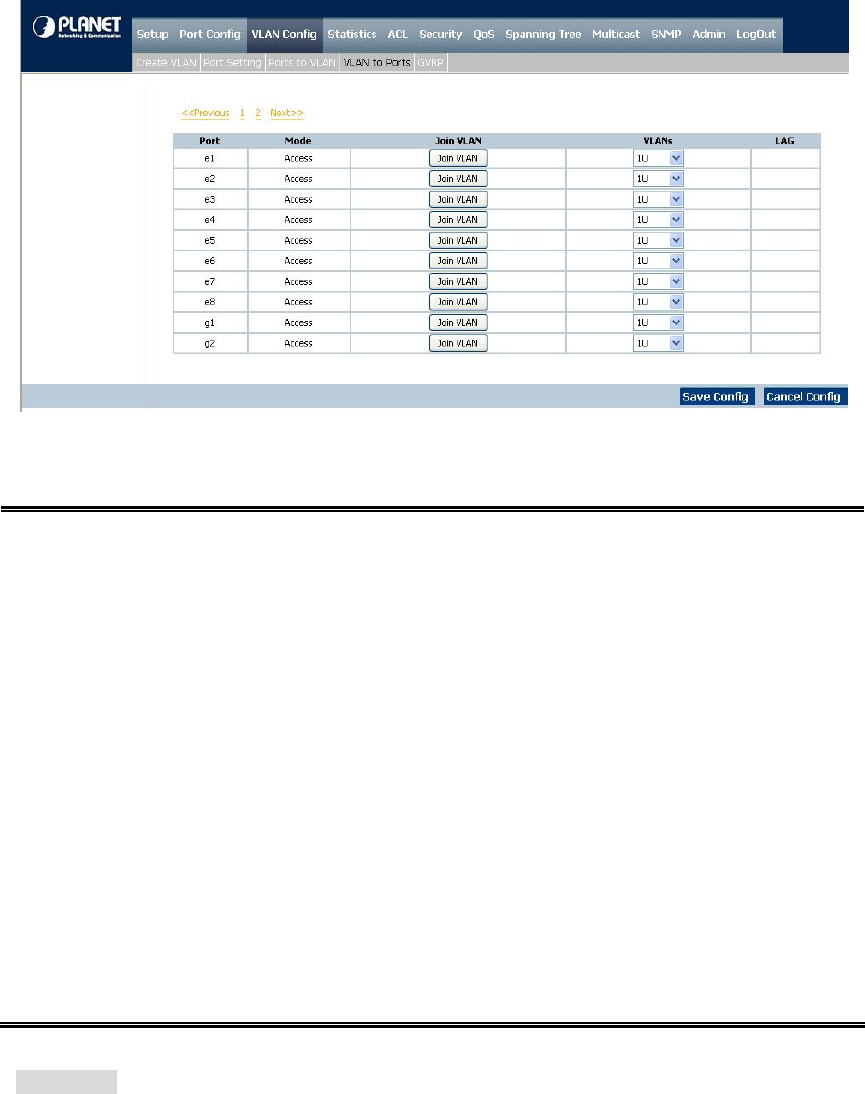

Figure 4-13 VLA N to Ports
The page contains the following fields:
• Port
Displays the interface number
• Mode
By which indicates the port to VLAN mode. Possible field values are:
• General - By which indicates the port belongs to VLANs, and each VLAN is
user-defined as tagged or untagged (full 802.1Q mode).
• Access - Indicates the port belongs to a single untagged VLAN. When a port is
in Access mode, the packet types which are accepted on the port cannot be
designated. Ingress filtering cannot be enabled/disabled on an access port.
• Trunk - Which indicates these ports belong to VLANs in which all ports are
tagged, except for one port that can be untagged.
• Join VLAN
Defines the VLANs to which the interface is joined.
• VLANs
Displays the PVID tag
• LAG
Indicates whether the port is a member of a LAG. If it is a member of a LAG, it
cannot be configured to a VLAN. The LAG to which belongs can be configured to a
VLAN
Press the “Join VLAN” button to selecet and add VLAN to per port. The screen in Figure 4-14 appears.
