- 42 -
4.3.3.4.1 Aggregator Settings
Allow editing the LACP Group configuration.

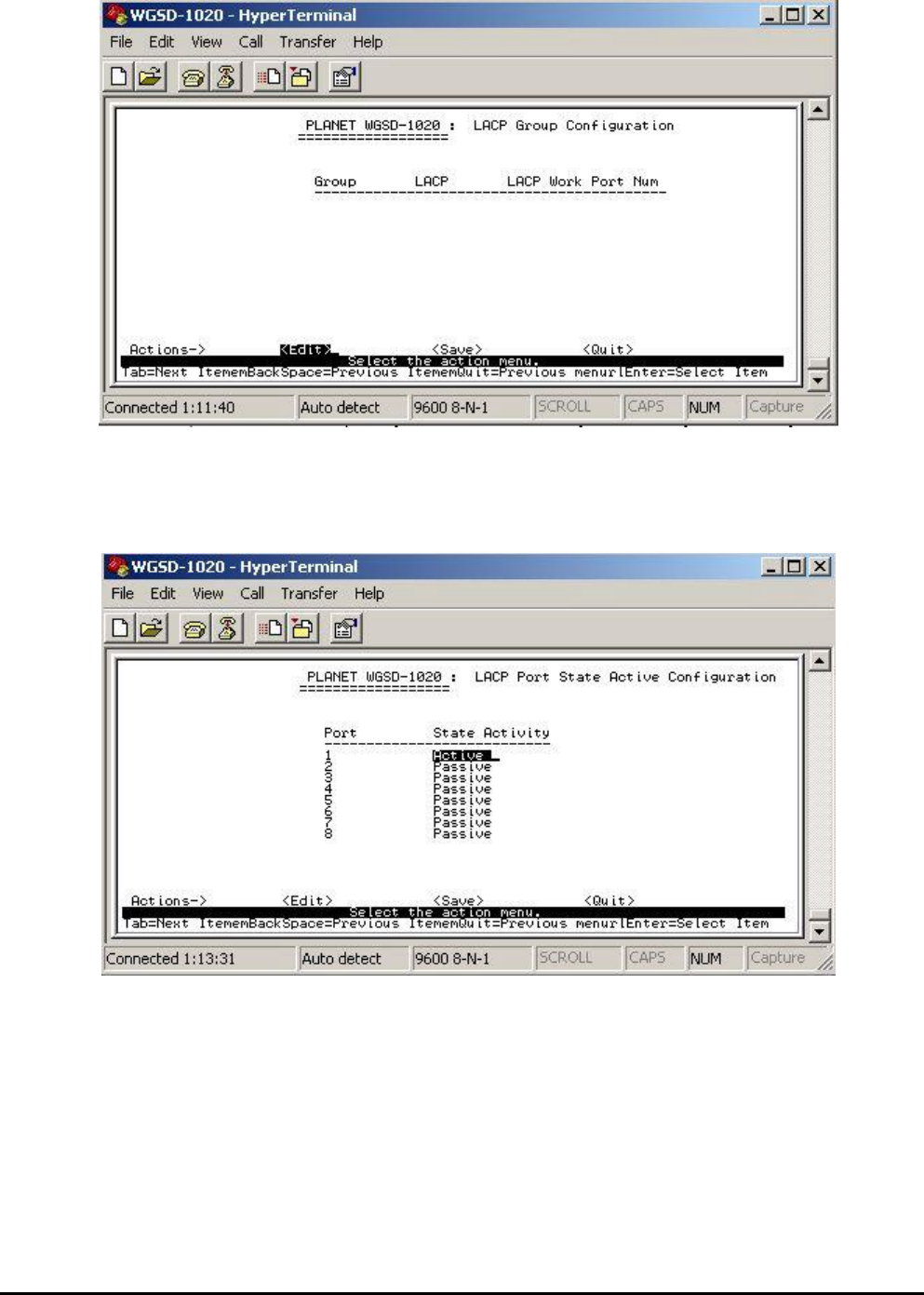

Figure 4-65 Aggregator settings screen
4.3.3.4.2 State Activity
Allow to set LACP port state activity of each port.
Figure 4-66 LACP port state Active configuration screen
Setup procedure:
1. Press Edit for passive or Active selection of each port.
2. After setup completed, press Ctrl-A to Action menu and choose save to save the current
configure. The screen in Figure 4-67 appears.
