- 23 -
4.3.2.4.3 Edit / Delete VLAN Group
Allow editing and deleting VLAN GROUP.

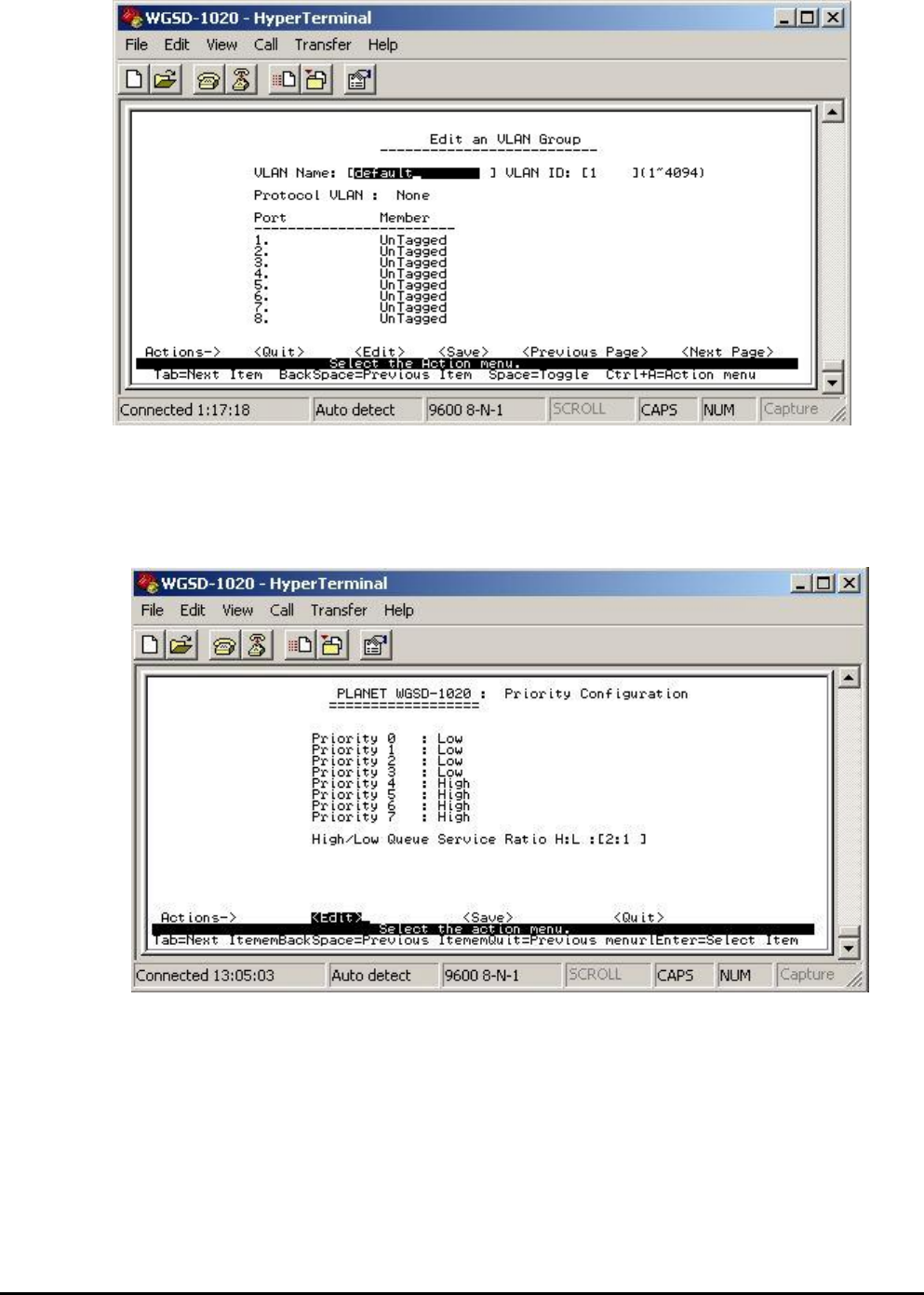

Figure 4-27 Edit a VLAN Group screen
4.3.2.5 Priority Configuration
Displays the options available for assigning High and Low priority to each port.
From the Switch Static Configuration sub-screen (see Figure 4-9), highlight Priority
Configuration and press enter. The Priority Configuration screen in Figure 4-28 appears
Figure 4-28 Priority Configuration screen
Press ” Edit” to assigning High or Low priority of each port.After setup completed, press
“Ctrl-A” and choose “Save” to save the current configuration. The screen in Figure 4-29
appears.
