3
Chapter 2 HARDWARE INSTALLATION
This section is describes the hardware features and installation of 4-slot Managed Modular
Switch. Before using MGSW-004, read the users manual carefully.
MGSW-004 has provide different modules
Ø 8-Port 10/100 auto-sensing Intelligent Switch Module
Ø 4-Port 100 Base-FX Intelligent Fiber Module
Ø Gigabit 1000Base-T Intelligent Switch Module
Ø Gigabit 1000Base-SX/LX Intelligent Fiber Module
2.1 Font Panel
The font panel of the 4-slot Managed Modular Switch consist LED indicators, console port,
and 4-slot modules.

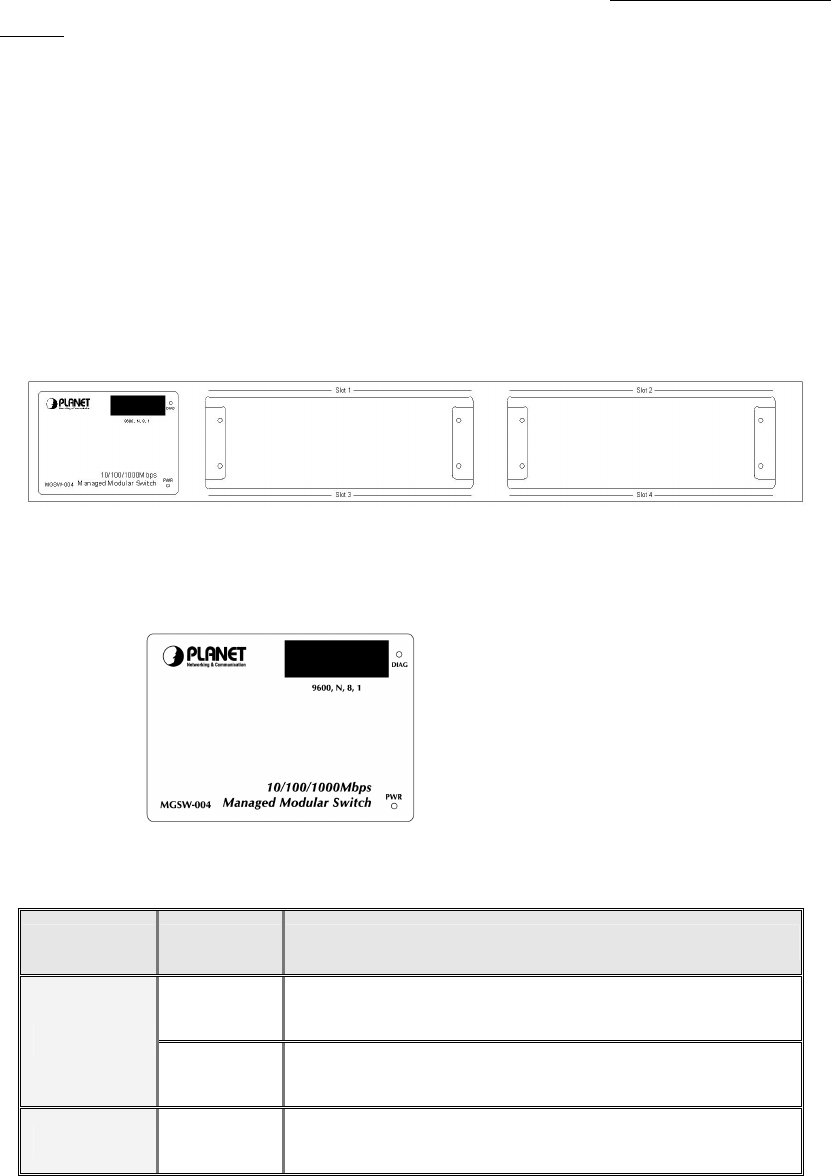

The Font Panel of MGSW-004
LED Indicators
LED Indicators
LED Status Description
Green Power On
Power
Off Power is not connected
Diag.
Red Lit on: Alert and problem notice
