4.2 Home
The homepage is display the configuration of the MGSW-004
System Name
An administratively-assigned name of the managed
unit
System Location The physical location of this managed unit
System Contact The contact person for this managed unit.
System Up Time The time last since the managed unit
IP Address The IP address of the managed unit
Subnet Mask The subnet mask of the managed unit
Default Gateway The default Gateway of the managed unit
MAC Address The MAC address of the managed unit
Console The RS232 Console setting of the managed unit
Firmware Version The firmware version of the managed unit
4.3 Modules

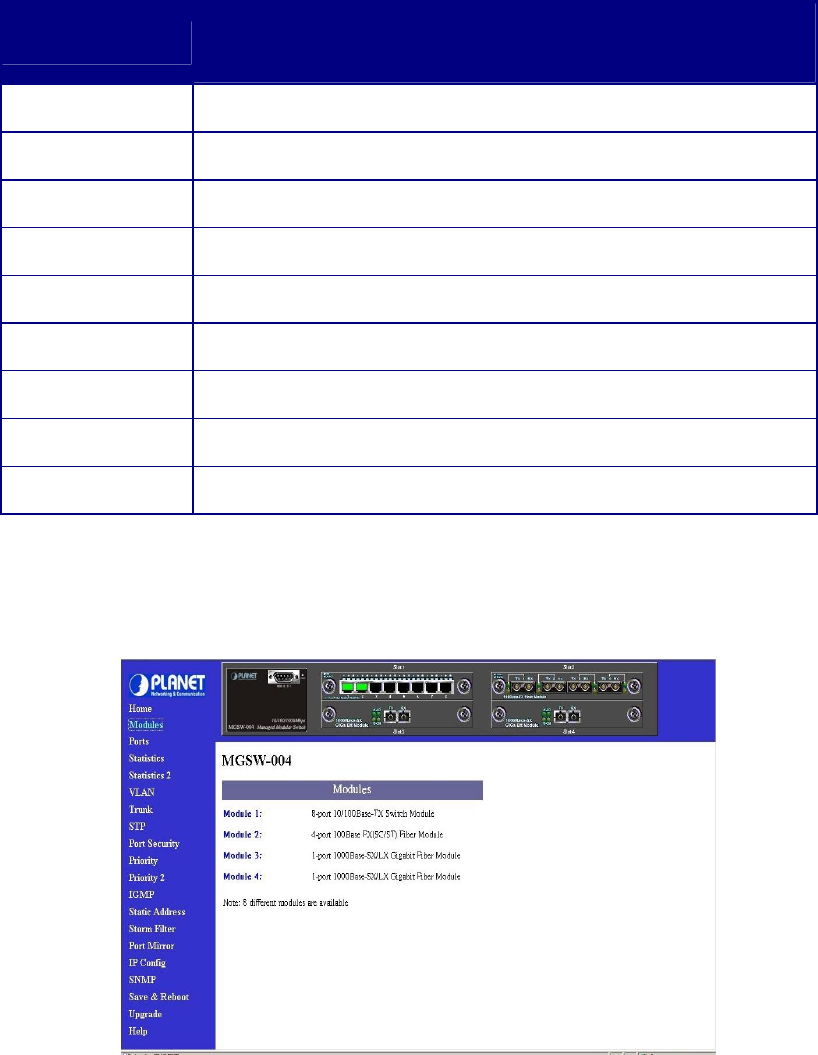

This page shows the modules that have installed into the MGSW-004. The optional modules
can be 8-port 10/100Base N-Way Switch Module, 100Base-FX Fiber Module (ST/SC),
1000Base-LX Gigabit Module, 1000Base-SX Gigabit Module and 1 x 1000Base-T(Gigabit)
4.4 Ports
This page shows the port status of each port in each module, you can enable/disable each port,
configure Speed/Duplex for each port, and assign VLAN ID
