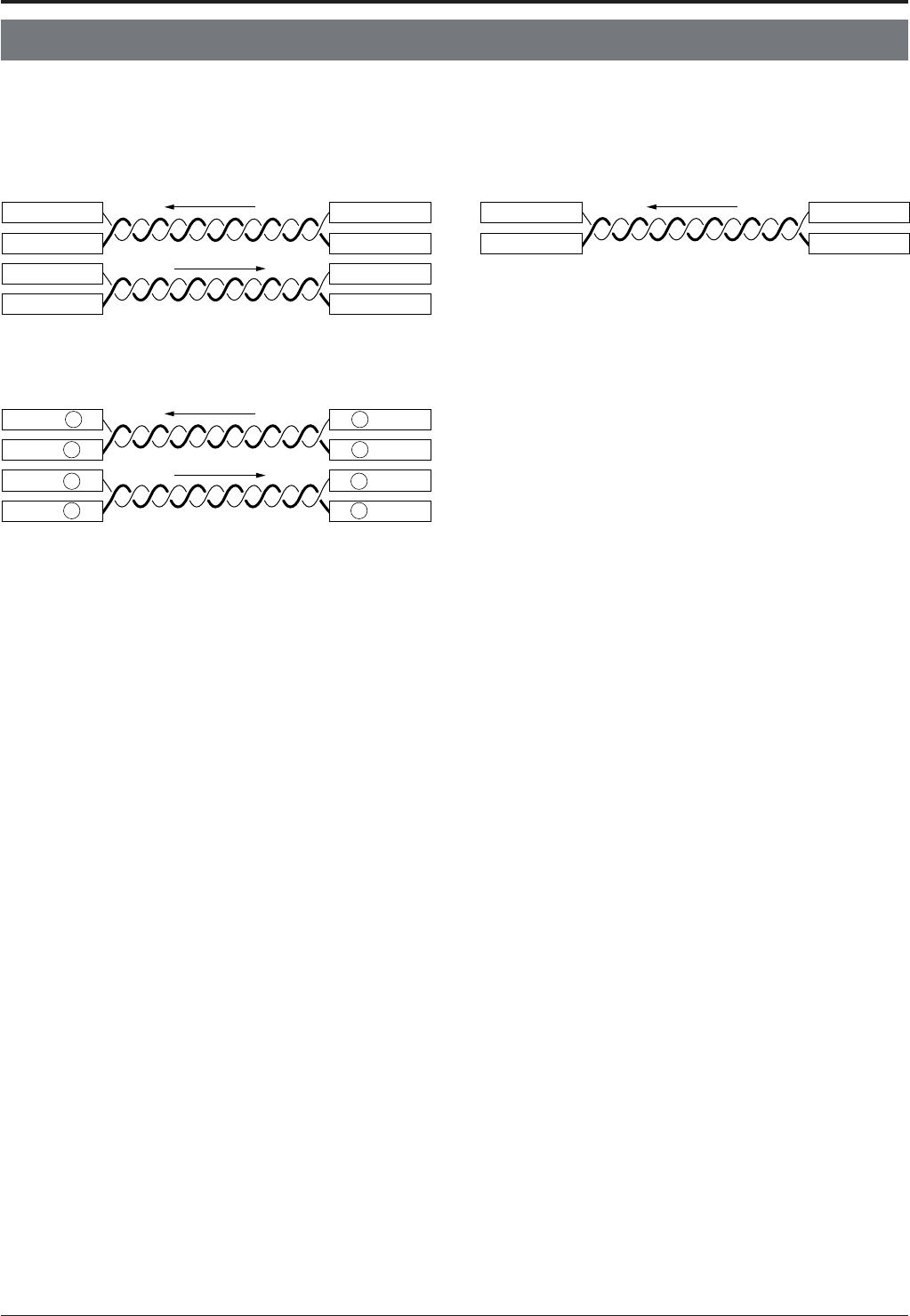

Use twisted-pair cables for the connections.
Duplex
When the camera is controlled using the full duplex trans-
mission protocol, set Switch 5 to OFF.
Simplex
When the camera is controlled using the simplex trans-
mission protocol, set Switch 5 to ON.
Camera Controller
RX+
RX–
TX+
TX–
TX+
TX–
RX+
RX–
Camera Controller
RX+
RX–
TX+
TX–
Two wires must be connected.
Four wires must be connected.
For example (connection with an RM-P2580)
Camera RM-P2580
RX+ C
RX– D
C TX+
D TX–
TX+ A
TX– B
A RX+
B RX–
