Diagrams
System Power
157
System Power
Figure 62 shows the power distribution and connec-
tions for the C Class power distribution boards.

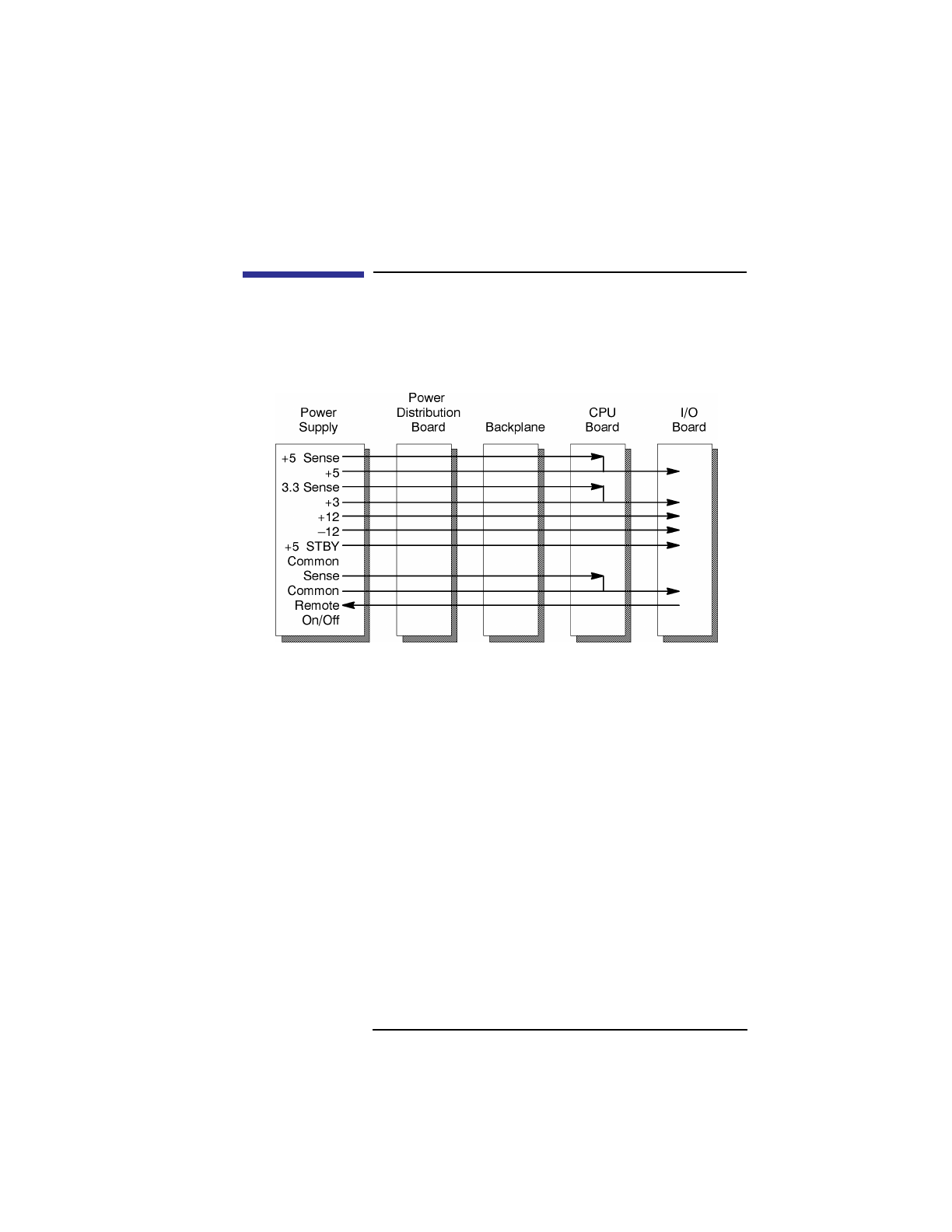

Figure 62 Power Distribution Board
The power supply distributes power through the
following connectors:
CPU Board Connector (11-pin)
Floppy Drive Connector (2-pin)
Hard Disk Drive Connector (4-pin)
Fan Connector on CPU board (2-pin)
Table 16 lists the pinouts for the power supply connec-
tor to the CPU board at J10:
