4–24 Maintenance and Service Guide
Removal and replacement procedures

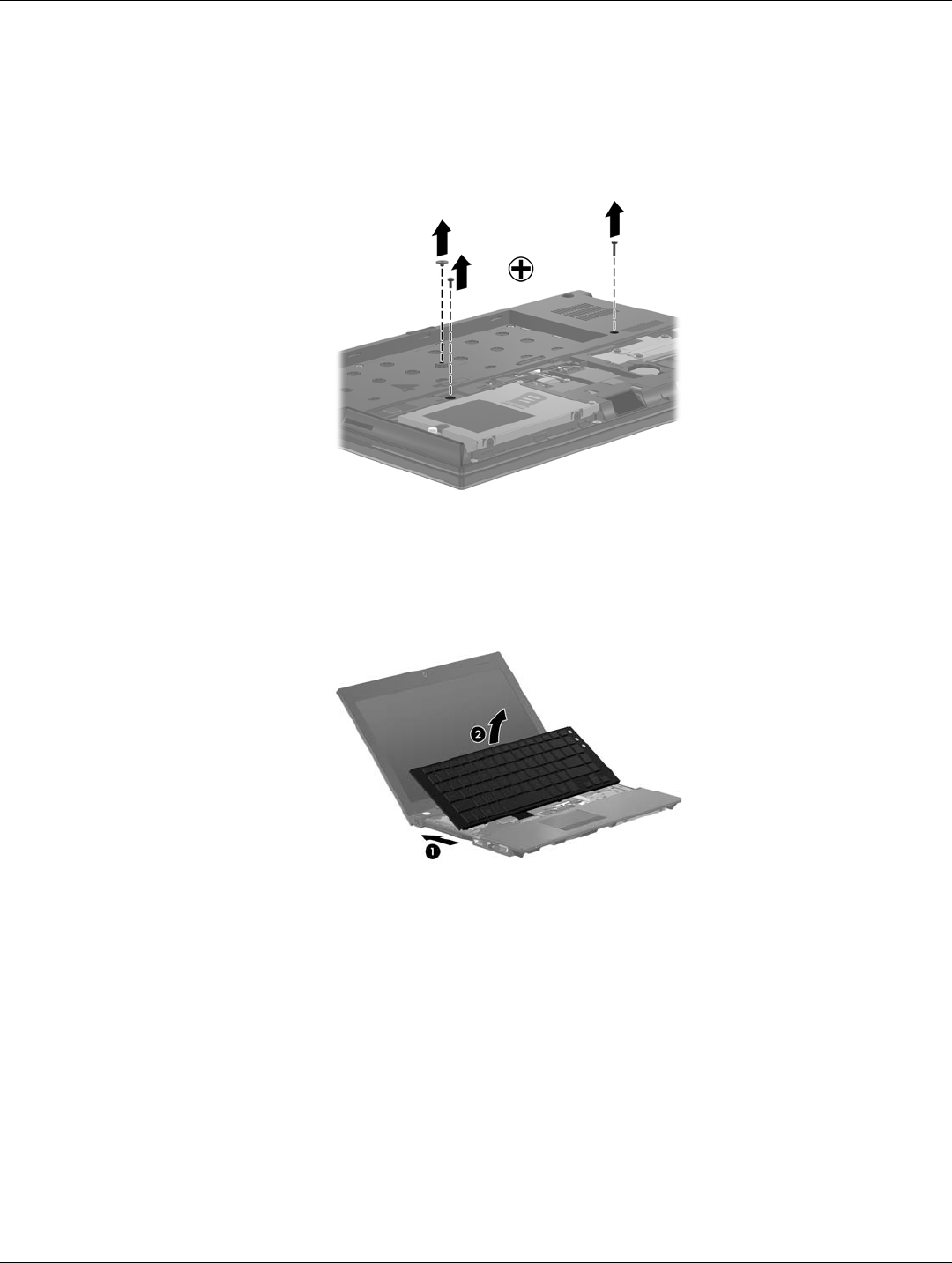

Remove the keyboard:
1. Position the computer with the front toward you.
2. Remove the following screws:
Two Torx T8M2.5×5.0 screws 1 in the mass storage device bay and the wireless module compartment
One Phillips PM2.5×2.0 broadhead screw 2 in the battery bay
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
5. Slide the keyboard 1 back until it rests on the display.
6. Lift the rear edge of the keyboard 2 until it rests at an angle.
