6Ć27 Removal and ReplacementC4699Ć90000

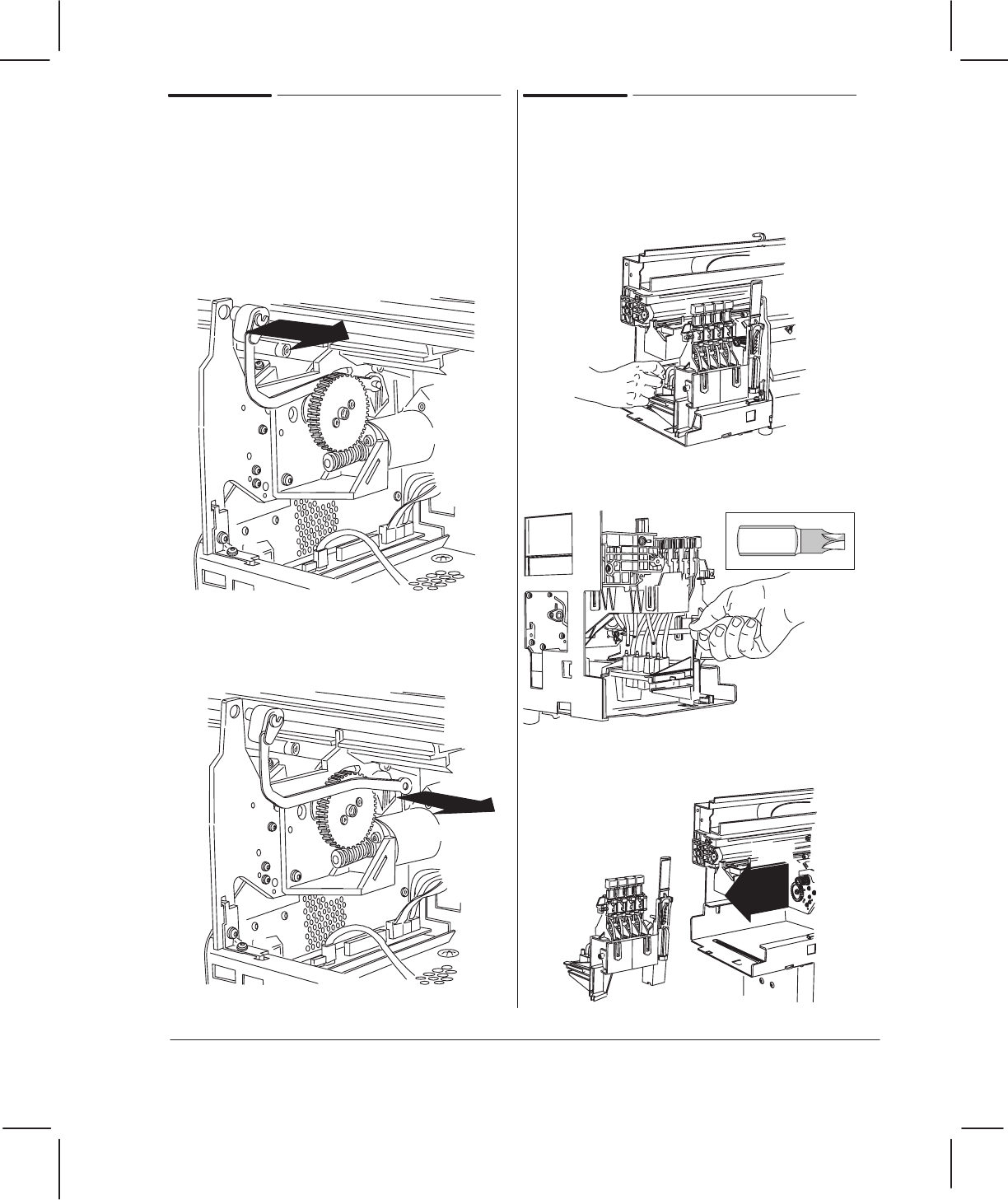

Removing the PinchĆArmĆLever
Linkage
1 Remove the right endĆcover ' page 6Ć10.
2 Ease the front plastic part of the linkage
to the right, out from the hole in the right
sideĆplate.
3 Remove the linkage from the cam journal
on the right sideĆplate.
Removing the Primer
1 Remove the left endĆcover ' page 6Ć9.
2 Disconnect the four short tubes from the
ink separator.
3 Remove the screw that attaches the
primer to the left sideĆplate.
Torx-20
4 Slide the primer to the left, and remove it
from the plotter.
