Reinstalling the Entry Platen
The order in which you replace the screws on
the entry platen is important.

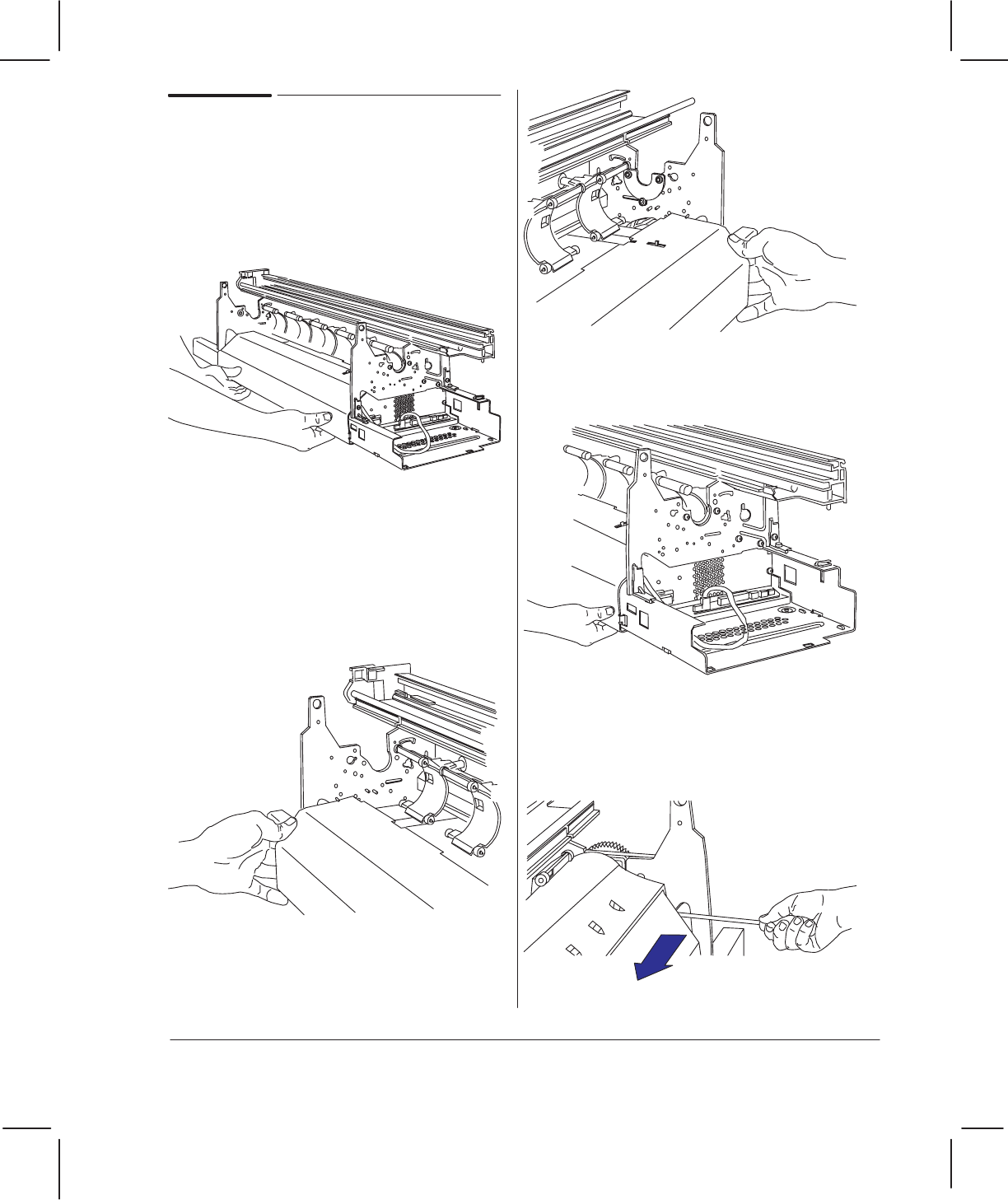

1 Position the entry platen between the two
sideĆplates, feeding the media sensor
cable under the right sideĆplate.
2 Make sure that the mediaĆsensor cable is
not obstructing the movement of the
mediaĆsensor flags.
3 Slide the top of the entry platen in, and
correctly position it on the inside of each
sideĆplate.
On each sideĆplate, the upper two pins
should touch the entry platen above it.
4 Refasten the indicated entryĆplaten clips.
5 Inserting a screwdriver under the
sideĆplate on the right of the entry platen,
lever the entry platen over to the left, so
that it is flush against the left sideĆplate.
