System Setup
Reference
• RTCM In/Text Out— allows DGPS input using a standard RTCM format and also provides
a standardized, fi xed-column ASCII output with data for position, track,
speed, etc.
• None—provides no interfacing capabilities.
To select an input/output interface format:
1. With the System Setup on the screen, select the fi le tab for ‘Interface’ and press ENTER.
2. Use down portion of the ROCKER KEYPAD to select the ‘FORMAT’ fi eld and press ENTER. A
pop-up window will show the available settings.
3. Use the ROCKER KEYPAD to select the desired setting and press ENTER.
4. If required for the setting, highlight the ‘BAUD RATE’ fi eld, press ENTER, select the desired rate
and press ENTER again.
5. For GARMIN DGPS and RTCM In/NMEA Out, the ‘BEACON’ fi eld may be set to ‘Scan’ or ‘Manual’.
If ‘Manual’ is selected, enter the beacon frequency and bit rate in the appropriate fi elds.

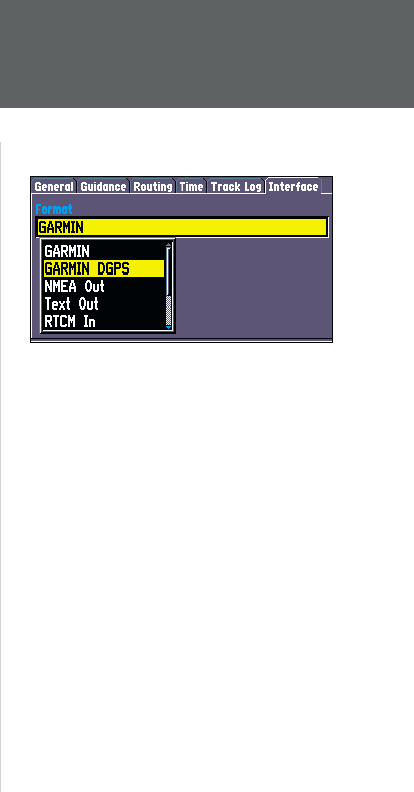

You can select an I/O Interface Format from the Format
Menu.
